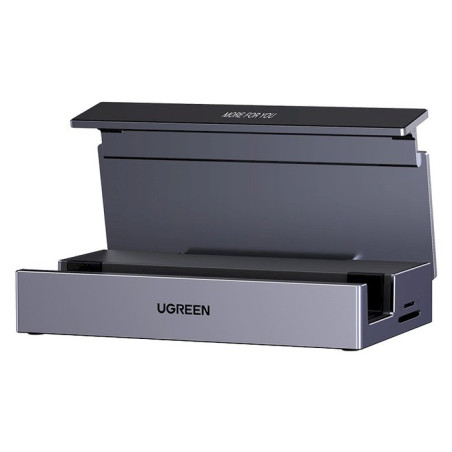

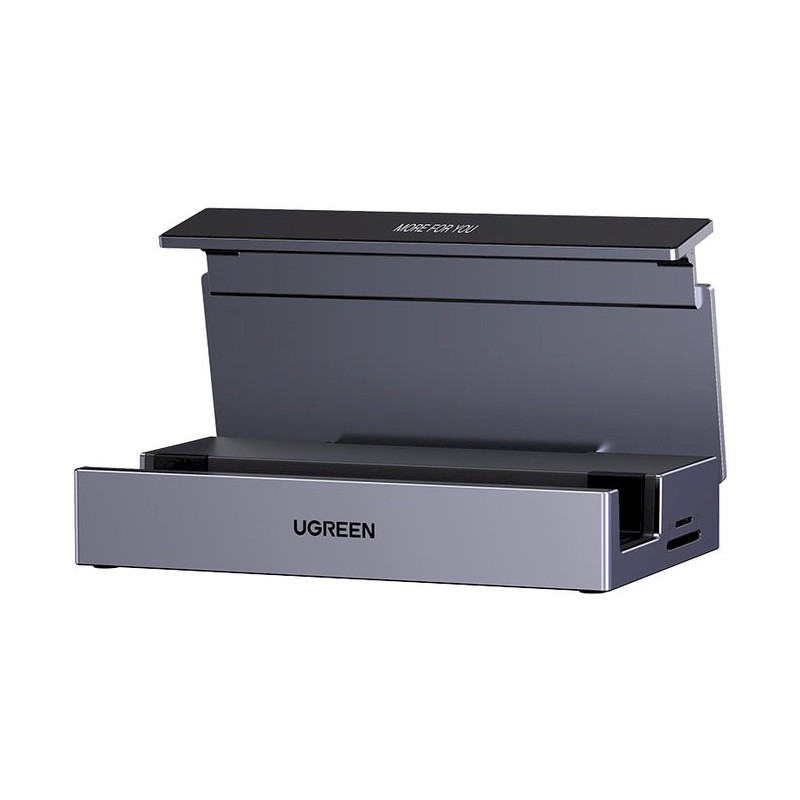

UGREEN CM800 9-in-1 USB-C Steam Deck Docking Station 4K@120Hz / foldable stand

The Ugreen CM800 is a 9-in-1 USB-C docking station with an integrated foldable stand for handheld gaming setups. It supports external display output, 100W USB-C PD charging, high-speed data transfer, wired Ethernet, and SD/TF card access.

Features

9-in-1 USB-C docking station with integrated foldable stand

Designed to keep the handheld elevated and improve airflow around rear vents

HDMI output for external display use

10Gbps data transfer through USB-C and USB-A data ports

Gigabit Ethernet for a stable wired network connection

SD/TF card reader for quick file access and transfers


Technical Specifications
Design

Type: USB-C docking station with foldable stand

Ports: 9-in-1

Color: Black

Stand design: Adjustable, foldable dual-panel design


Display

HDMI output: 1 × HDMI 2.0

Maximum resolution: 4K@60Hz

Refresh rate support: Higher refresh rates at lower resolutions


Connectivity

USB-C data port: 1 × USB-C 3.1, up to 10Gbps

USB-A data port: 1 × USB-A 3.1, up to 10Gbps

USB-A ports: 2 × USB-A 2.0

Ethernet: 1 × Gigabit Ethernet

Card reader: SD/TF card slot


Power

Charging: USB-C PD up to 100W

Input voltage: 20 V


Dimensions and Weight

Product dimensions: 160 × 115 × 40 mm

Weight: 417 g


Compatibility

Steam Deck

Steam Deck OLED

ROG Ally

Legion Go

MSI Claw

Other USB-C devices
