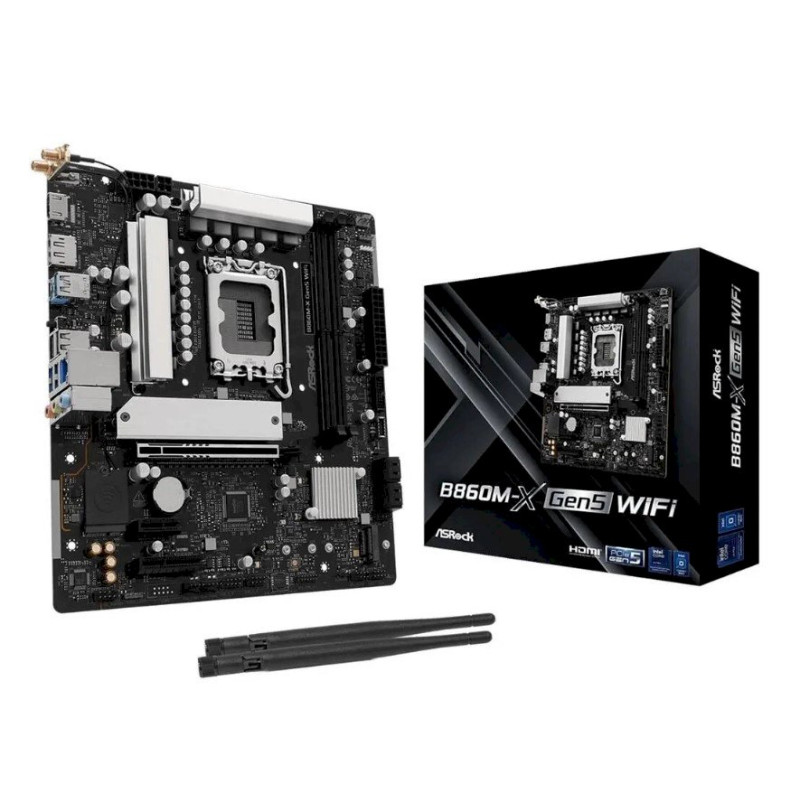

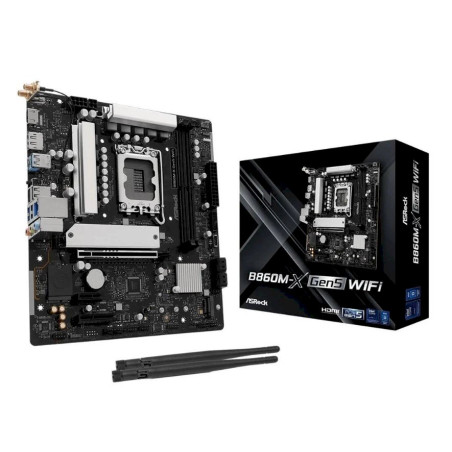

Asrock B860M-X Motherboard Gen5 WiFi

The ASROCK B860M-X is a compact Micro ATX motherboard based on the Intel B860 chipset and designed for Intel Core Ultra processors using the LGA1851 socket. It supports modern DDR5 memory, high-speed M.2 PCIe storage and 2.5 Gigabit Ethernet networking. With PCIe 5.0 support and a modern selection of connectivity options, it is suitable for building a powerful home, work or gaming PC.

Technical specifications:


Brand: ASROCK

Model: B860M-X

Form factor: Micro ATX

Chipset: Intel B860

Socket: LGA1851

Supported processors: Intel Core Ultra Series 2

Memory type: DDR5

RAM slots: 2

Maximum RAM capacity: up to 128 GB

Memory support: DDR5-4800 and higher (OC)

Memory architecture: Dual-channel

PCI Express x16: 1 × PCIe 5.0 x16

PCI Express x1: 2 × PCIe 4.0 x1

M.2 SSD slots: 2

Primary M.2: PCIe 5.0 x4

Secondary M.2: PCIe 4.0 x4

SATA III: 4

Network adapter: Dragon 2.5G LAN

LAN speed: 2.5 Gb/s

Audio: 7.1-channel HD Audio

Audio codec: Realtek ALC897

HDMI: 1

DisplayPort: 1

Rear USB: USB 3.2 and USB 2.0

Internal USB headers: yes

RGB: ASRock Polychrome RGB

TPM: supported

Wi-Fi: no

Bluetooth: no

CPU power connector: 8-pin

Colour: black
