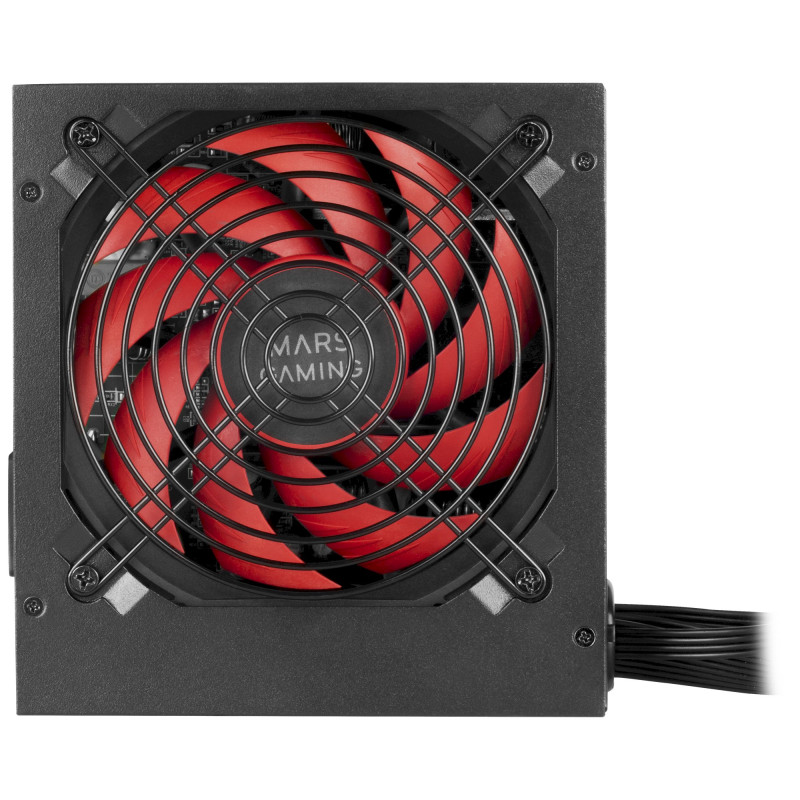

Mars Gaming MPIII550P Power Supply Unit 550 W 24-pin ATX ATX / black

Mars Gaming MPIII550P is a 550 W ATX power supply unit with 5-year warranty, DC-DC technology, AI-RPM fan control, and safety systems including OVP, UVP, OCP, OPP, and SCP.

Features

5-year warranty

Silent AI-RPM technology with IC control and 120 mm FDB fan

DC-DC technology and SMD technology

Advanced safety systems: OVP, UVP, OCP, OPP, SCP

99% DIGITAL APFC efficiency and +85% electrical efficiency

Long, flat black cables for easier installation


Technical Specifications

Model: MPIII550P

Product type: Power supply unit

Purpose: PC

PSU form factor: ATX

Cabling type: Non-Modular

Cooling type: Active

Fan diameter: 12 cm

Number of fans: 1 fan

Fan location: Top

Noise level: 14 dB

On/off switch: Yes

Certification: ATX12V

Compliance certificates: CE, RoHS

Warranty: 5 years


Design

Technology: SMD

Components: Grade-A components

PCB: Double-layer fiberglass PCB

Cables: Long, flat black cables


Power

Total power: 550 W

AC input voltage: 220 - 240 V

AC input frequency: 50/60 Hz

Input current: 7 A

Power Factor Correction (PFC) type: Active

Efficiency: 85%

Combined power (+12V): 546 W

Combined power (+3.3V): 120 W

Combined power (+5V): 120 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 12.5 W

Max output current (+12V): 45.5 A

Max output current (+3.3V): 18 A

Max output current (+5V): 18 A

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 2.5 A

Protection features: OVP, UVP, OCP, OPP, SCP

Digital APFC efficiency: 99%

Electrical efficiency: +85%


Connectors

Motherboard power connector: 24-pin ATX

EPS power connector: 4+4 pin

PCI Express power connectors: 1 x 6+2 pin

SATA power connectors: 3

Peripheral (Molex) power connectors: 2 x 4-pin


Dimensions and Weight

Width: 150 mm

Depth: 145 mm

Height: 85 mm

Weight: 1.25 kg

Package width: 124 mm

Package depth: 237 mm

Package height: 205 mm

Package weight: 1.12 kg
