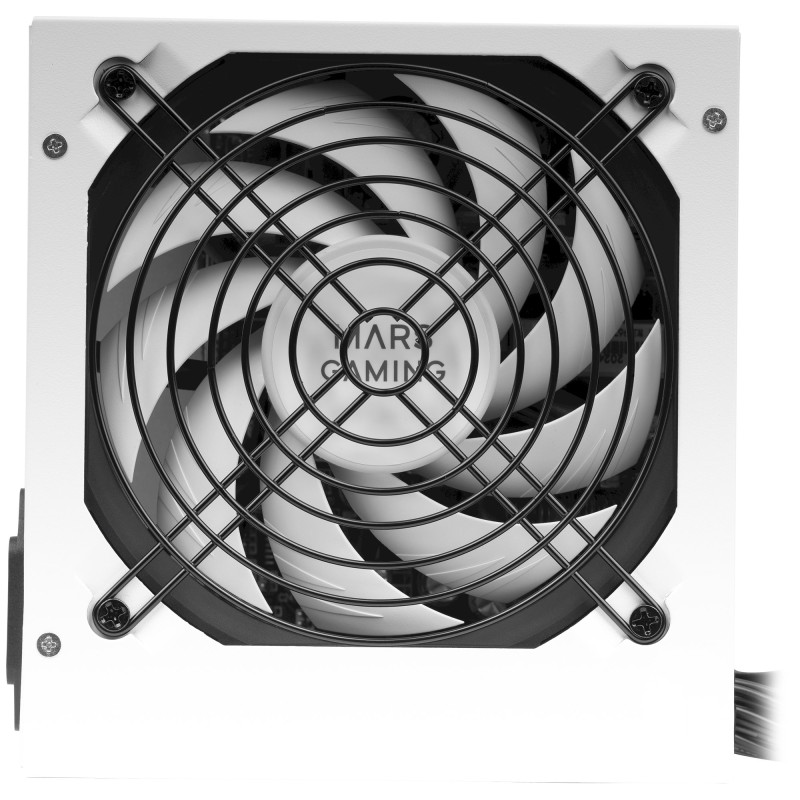

Mars Gaming MPIII550PW Power Supply Unit 550 W 24-pin ATX / white

Mars Gaming MPIII550PW is a 550 W ATX power supply with a 5-year warranty, advanced safety systems, and non-modular flat black cables for cleaner installation.

Features

550 W power with DC-DC technology for stability and performance.

AI-RPM technology with IC control for quieter operation.

FDB fan for durability and minimal noise.

Advanced protection systems: OVP, UVP, OCP, OPP, and SCP.

SMD technology and grade-A components.

99% DIGITAL APFC efficiency and 85% electrical efficiency.


Technical Specifications

Model: MPIII550PW

Product type: Power supply unit

PSU form factor: ATX

Purpose: PC

Colour: White

Cabling type: Non-Modular

Cooling type: Active

Fan diameter: 12 cm

Number of fans: 1

Noise level: 14 dB

On/off switch: Yes

Certification: ATX12V

Compliance certificates: CE, RoHS

Warranty: 5 years


Compatibility

Motherboard power connector: 24-pin ATX

PSU form factor: ATX

Purpose: PC


Connectors

Motherboard power connector: 1 x 24-pin ATX

EPS power connector: 1 x 4+4 pin

PCI Express power connector: 1 x 6+2 pin

SATA power connectors: 3

Peripheral (Molex) power connectors: 2 x 4-pin


Power

Total power: 550 W

AC input voltage: 220 - 240 V

AC input frequency: 50/60 Hz

Input current: 7 A

Power Factor Correction (PFC) type: Active

Efficiency: 85%

Combined power (+3.3V): 120 W

Combined power (+12V): 546 W

Combined power (+5V): 120 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 12.5 W

Max output current (+3.3V): 18 A

Max output current (+12V): 45.5 A

Max output current (+5V): 18 A

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 2.5 A

Single +12V rail: Yes


Dimensions and Weight

Width: 150 mm

Depth: 145 mm

Height: 85 mm

Weight: 1.25 kg

Package width: 124 mm

Package depth: 237 mm

Package height: 205 mm

Package weight: 1.12 kg
