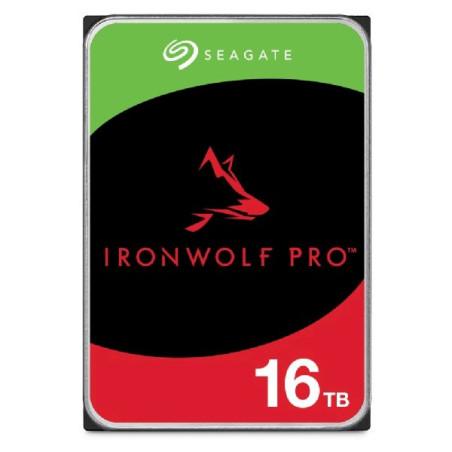

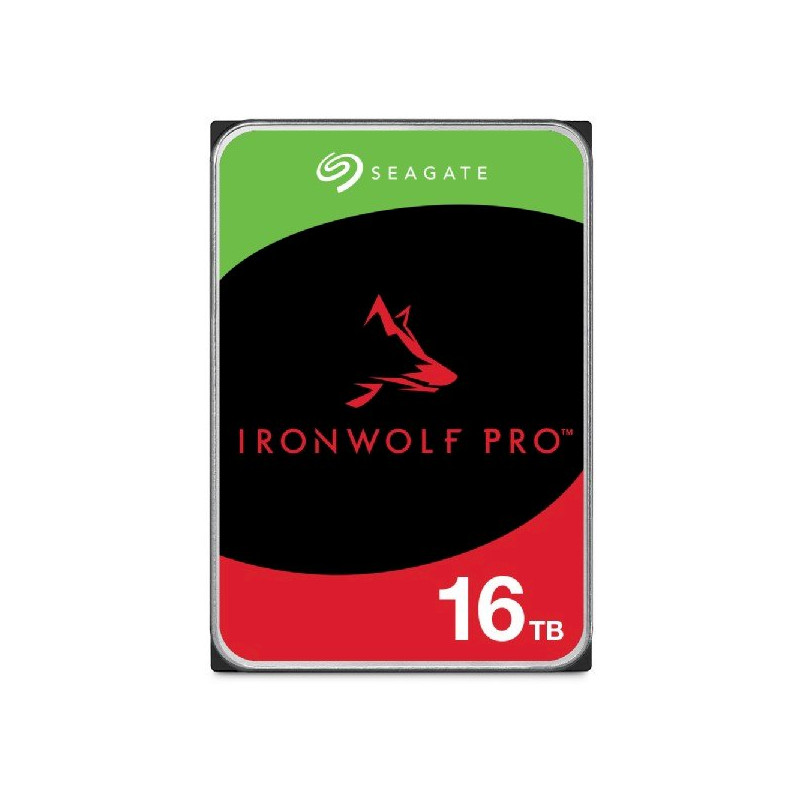

Seagate IronWolf Pro ST16000NT001 HDD 16TB 256mb 3.5" SATA3

The Seagate IronWolf Pro 16 TB is an internal 3.5" HDD designed for NAS systems and other demanding data environments. It offers Serial ATA III connectivity and high-capacity storage for backups, shared files, media libraries, and business data.

Features

16 TB storage capacity for large-scale file storage and backup

Designed for NAS use and shared network storage environments

3.5" internal hard drive format for standard desktop and NAS installations

Serial ATA III connectivity for supported systems

Suitable for documents, media collections, and business data


Technical Specifications
Specifications

Type: HDD

HDD size: 3.5"

HDD capacity: 16 TB

Component for: NAS

Storage drive buffer size: 256 MB

HDD speed: 7200 RPM

Recording technology: CMR

HDD interface transfer rate: 6 Gbit/s

HDD sustained transfer rate: 270 MiB/s

Workload rate limit: 550 TB/year

Mean time between failures (MTBF): 2500000 h

Rotational Vibration (RV) sensors: Yes

Noise level (idle): 20 dB


Power

Power consumption (off): 1 W

Power consumption (standby): 1 W

Power consumption (idle): 5 W

Power consumption (typical): 7.6 W

Operating voltage: 5 / 12 V

Start-up current: 2 A


Operational conditions

Operating temperature (T-T): 0 - 65 °C

Storage temperature (T-T): -40 - 70 °C

Operating shock: 50 G

Non-operating vibration: 2.27 G

Non-operating shock: 200 G


Dimensions and Weight

Width: 101.8 mm

Height: 26.1 mm

Depth: 147 mm

Weight: 670 g
