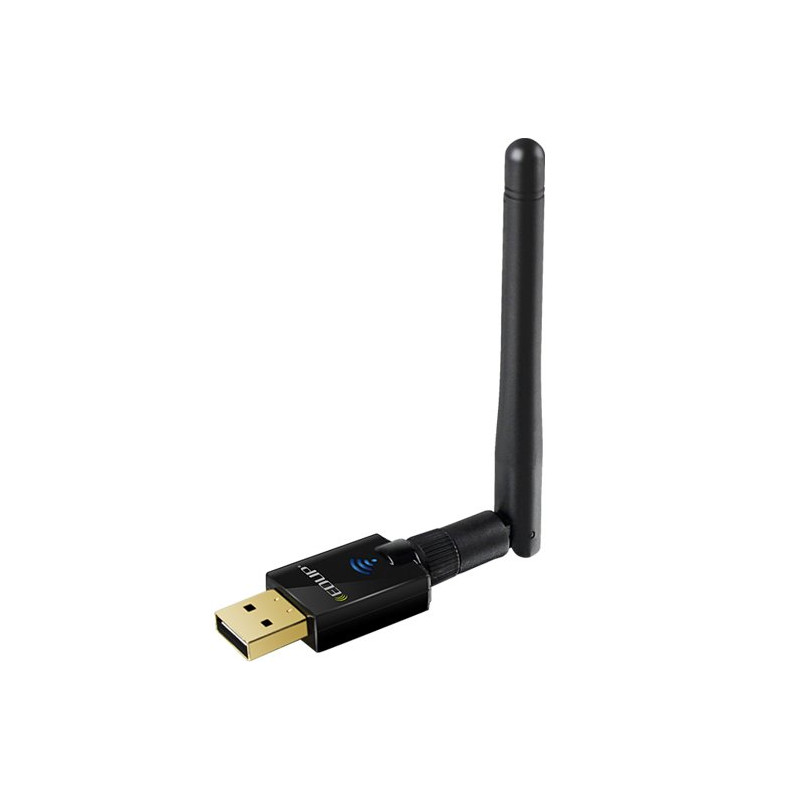

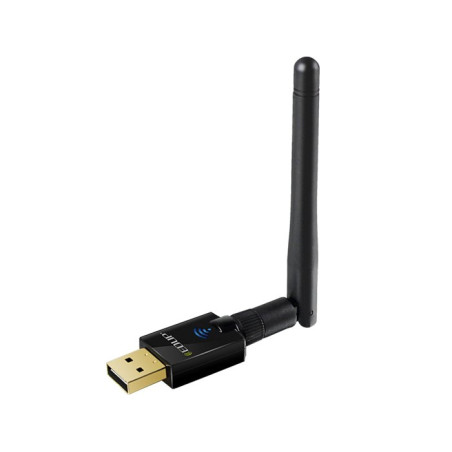

EDUP EP - AC1607 Dual Band 600 Mbps USB WiFi Adapter 2.4GHz / 5.8GHz / 802.11AC / With External Antenna

Wireless Standards

IEEE 802.11n IEEE 802.11g

IEEE 802.11b

IEEE 802.11ac

IEEE 802.11a

Transmit Speed

802.11b: 1/2 / 5.5 / 11Mbps

802.11g: 6/9/12/18/24/36/48 / 54Mbps

802.11n: up to 150Mbps

802.11n: up to 433Mbps

Frequency Range

2.412 ~ 2.4835 GHz

5.180 ~ 5.320GHz

5.500 ~ 5.700GHz

5.745 ~ 5.825GHz

Work Channel

1 ~ 14 (2.4G)

36 ~ 165 (5G)

Work power

18dBm (Typical)

Sensitivity

11n: -68dBm @ 130M; -68dBm @ 108M

11g: -69dBm @ 54M

11b: -85dBm @ 11M

11ac: -59dBm @ 867M

Wireless Security

WPA / WPA2 / WPA-WPA2 / 802.1x

64/128 bit WEP

WPS (PIN, PBC)

Support Operation System

winxp, winvista, win7; mac10.5 ~ mac10.8;

Linux Driver for Kernel 2.6.18 ~ 2.6.38 and 3.0.2; Android 1.6 ~ 2.3 and 4.0

Chipset

Realtek8811CU

Host Interface

USB 2.0

LED (BLUE)

Link / Act

Antenna Type

Internal Omni-directional Antenna

Size (cm)

6.0cm × 3cm × 8.9cm

Environment

Operating Temperature: 0 ℃ ~ 45 ℃

Storage Temperature: -20 ℃ ~ 75 ℃

Operating Humidity: 10% ~ 90% RH (Non Condensing)
