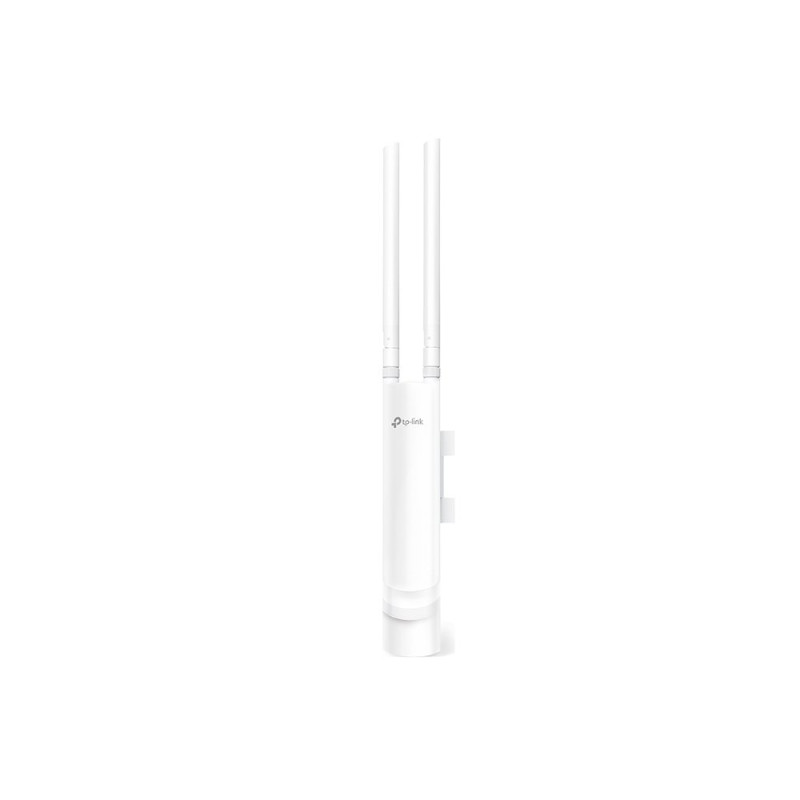

TP-Link EAP225-Outdoor Access Point / MU-MIMO / 1x RJ45 1000Mbps

TP-Link EAP225-Outdoor is a professional dual-band AC1200 outdoor access point designed to provide fast, reliable wireless coverage in outdoor environments such as parks, hotels, warehouses, schools, business campuses, cafés, and large residential properties. Equipped with MU-MIMO technology, weatherproof IP65 housing, and seamless integration with the Omada SDN platform, it delivers stable wireless performance for multiple connected users.

The access point supports both 802.3af PoE and Passive PoE, allowing flexible installation on walls or poles with a single Ethernet cable for both power and data. Advanced wireless technologies including Beamforming, Band Steering, Airtime Fairness, and Mesh support ensure efficient coverage and optimal network performance.

Technical Specifications

Product: TP-Link EAP225-Outdoor

Device Type: Outdoor Wireless Access Point

Wi-Fi Standard: IEEE 802.11a/b/g/n/ac (Wi-Fi 5)

Wireless Speed:

300 Mbps @ 2.4 GHz

867 Mbps @ 5 GHz

Total: AC1200 (1200 Mbps)




MU-MIMO: Yes

Frequency Bands: 2.4 GHz and 5 GHz

Ethernet Port: 1 × Gigabit RJ45 (10/100/1000 Mbps)

Power Supply:

IEEE 802.3af PoE

24 V Passive PoE (adapter included)




Antennas:

2 × External Dual-Band Omni Antennas

3 dBi (2.4 GHz)

4 dBi (5 GHz)




Wireless Features:

Beamforming

Band Steering

Airtime Fairness

Load Balancing

Mesh Support

Captive Portal

Fast Roaming (Omada)




Maximum SSIDs: 16

Security:

WPA/WPA2 Personal & Enterprise

802.1X Authentication

MAC Filtering

VLAN

Rogue AP Detection




Protection Rating: IP65 Weatherproof

Mounting: Pole or Wall

Operating Temperature: -30°C to +70°C

Maximum Power Consumption: 10.5 W

Dimensions: 215 × 46 × 27 mm

Colour: White
