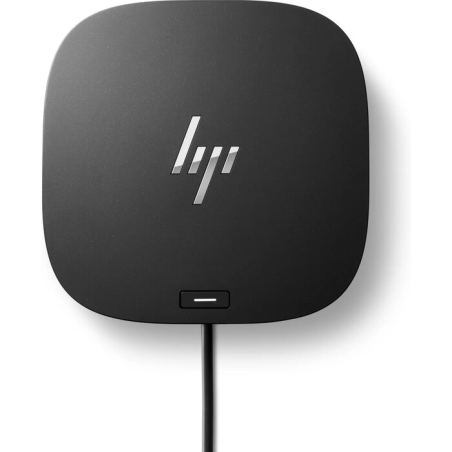

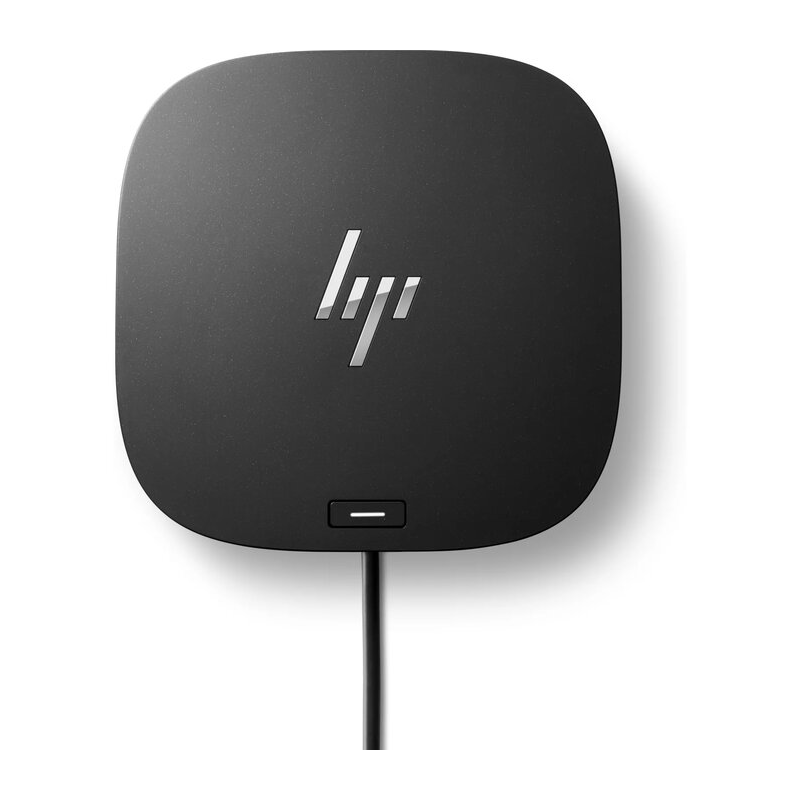

HP G5 Docking Station USB-C / 1× HDMI / 2× DisplayPort / 2 x USB / RJ-45 / PD 100W

HP USB-C Dock G5 (5TW10AA#ABB) is a universal docking station for modern laptops. A single USB-C cable connects your notebook to two external displays, peripherals, and wired networking while delivering power. Its compact 5×5-inch footprint saves desk space, and enterprise management features simplify IT deployment.

Key Features


Broad compatibility: works with HP and non-HP laptops with USB-C/Thunderbolt and DisplayPort Alt Mode support.




One-cable connectivity: access accessories, displays, network, and charging over a single USB-C connection.




IT management: PXE Boot, LAN/WLAN switching, Wake-on-LAN, MAC Address Pass-Through (some features on supported HP notebooks only).




Compact design: about 122 × 122 mm (5×5").




Ports & Interfaces


Front: 1× USB-C (data + up to 15 W power), integrated USB-C host cable (~1 m).




Sides: 2× USB-A (charging), 1× combo audio jack (3.5 mm).




Rear: 2× USB-A (charging), 2× DisplayPort™, 1× HDMI 2.0, 1× RJ-45 (Gigabit), Kensington security slot.




Display Connectivity


Up to 3 total displays (including the laptop screen): two external monitors + host display.




Power


Power to host (USB-C PD): up to 100 W.




PD profiles: 5V/9V/10V/12V/15V/20V — up to 5 A (max).




Compatibility


OS: Windows 10/7, macOS (certain management/eTag features may require Windows 10).




Host requirements: USB-C port with DisplayPort Alt Mode and USB Power Delivery.




IT Management & Security


Wake-on-LAN (warm/cold dock, S4/S5), MAC Address Pass-Through (S0/S3/S4/S5), remote dock firmware updates, and eTag asset tracking. (Some features available only on supported HP notebooks.)




Physical


Dimensions (W × D × H): 122 × 122 × 45 mm




Weight: ~0.68 kg




Controls: power button/LED (to power on/wake supported hosts).




Box Contents


HP USB-C Dock G5




AC power adapter (model/wattage varies by region)




Power cord, documentation

Note: The actual number/resolution of supported displays and PD profiles depends on your laptop’s specifications (GPU/CPU/OS, DP Alt Mode and PD support).
