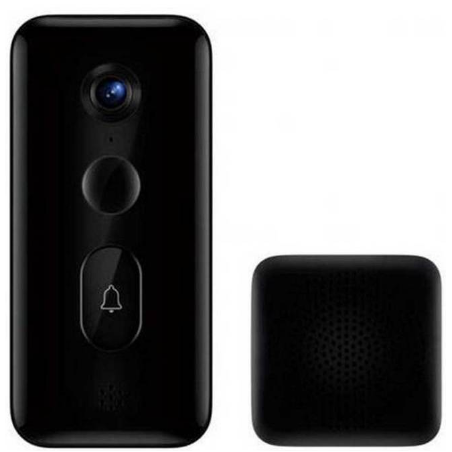

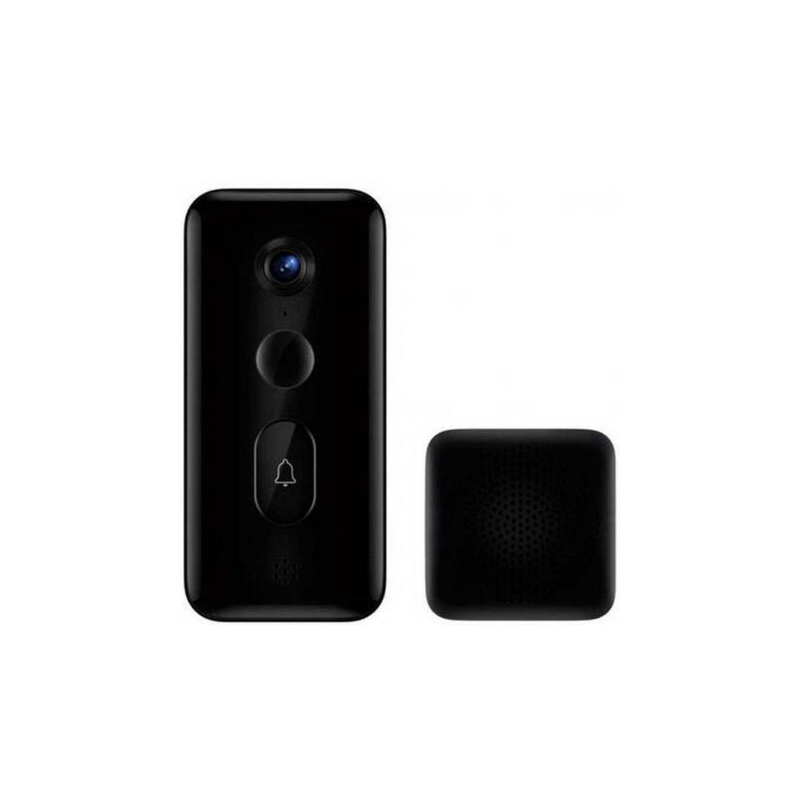

Xiaomi Mi 3S Smart Doorbell

Features:


Head to toe with D180°

IP65 waterproof

Two power supply modes

Xiaomi security chip

Ultra clear 2K resolution

5200mAh (typ) battery

Free 72h cloud storage

Dedicated indoor chime


Technical specifications:


External Dimensions: 146 × 52 × 29mm

IP Rating: IP65

Battery Capacity: 5200mAh (typical)

Rated Input:

5V⎓2A (Type-C port)

8-24VAC, 10-40VA, 50–60Hz (doorbell AC transformer)




Wireless Connectivity:

Wi-Fi IEEE 802.11b/g/n 2.4GHz

RF 433MHz




Infrared Light: 940 nm infrared light

Audio System: Two-way voice calls

Storage: Cloud storage

Charging Temperature: 0℃ to 45℃

Operating Temperature: -20℃ to 50℃

Operating Humidity: 10%-90% RH, non-condensing


Items included:


Smart doorbell × 1

Mounting base × 1

Angle holder × 1

Chime × 1

Removal pin × 1

Type-C charging cable × 1

Screws bag (wall screw × 2, wall plug × 2, angle holder screw × 2)

U-type extension wire × 2

Insulating cap × 2

U-type double terminal wire × 1

User manual × 1

Attention sticker × 1

Warranty notice × 1
