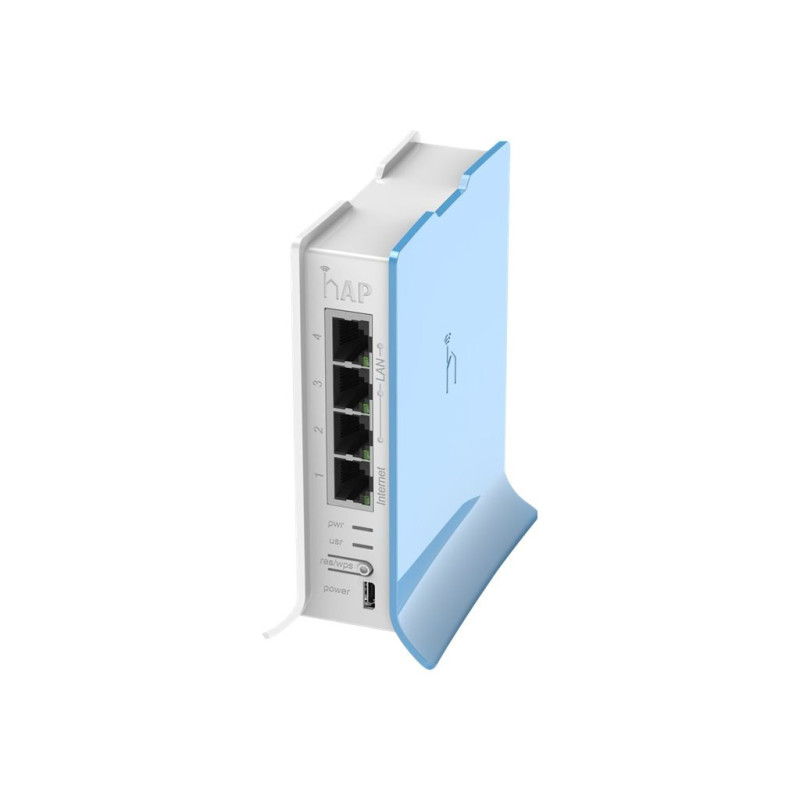

MikroTik RouterBOARD hAP lite Wireless Router (RB941-2nD-TC)







Product description
MikroTik RouterBOARD hAP lite - wireless router - Wi-Fi - desktop


Device type
Wireless Router - 4 Port Switch (Integrated)


Type of packaging
Desktop


Data connection protocol
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Frequency band
2.4 GHz


Characteristics
Auto Uplink (Auto MDI/MDI-X), WPS, Reset Button, 10 KV ESD Protector


Dimension gauge (W x D x H)
5.4cm x 10cm x 12.4cm










General


Connectivity technology
Wireless, wired


Data link protocol
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Device type
Wireless Router - 4 Port Switch (Integrated)


Body type
Desktop


Functions
Auto Upload (Auto MDI/MDI-X), Wi-Fi Protected Setup (WPS), Reset Button, 10 KV ESD Protector


Flash memory
16 MB


Frequency band
2.4 GHz


Processor
1 x QCA9531 650 MHz


RAM
32 MB


Status indicators
Power, LAN


Expansion / Connectivity


Interfaces
LAN: 3 x 10Base-T/100Base-TX - RJ-45 | WAN/LAN: 1 x 10Base-T/100Base-TX - RJ-45


Antenna


Antenna
Internal


Get a level
1.5 dBi


Power


Energy consumption in operation
3 watts


Power supply
External power adapter


Software/System Requirements


OS provided
MikroTik RouterOS


Dimensions and weight


Depth
10 cm


Height
12.4 cm


Width
5.4 cm


Environmental parameters


Maximum working temperature
70 °C


Minimum operating temperature
-20 °C
