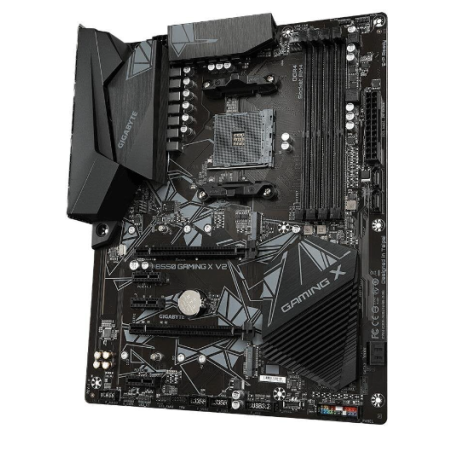

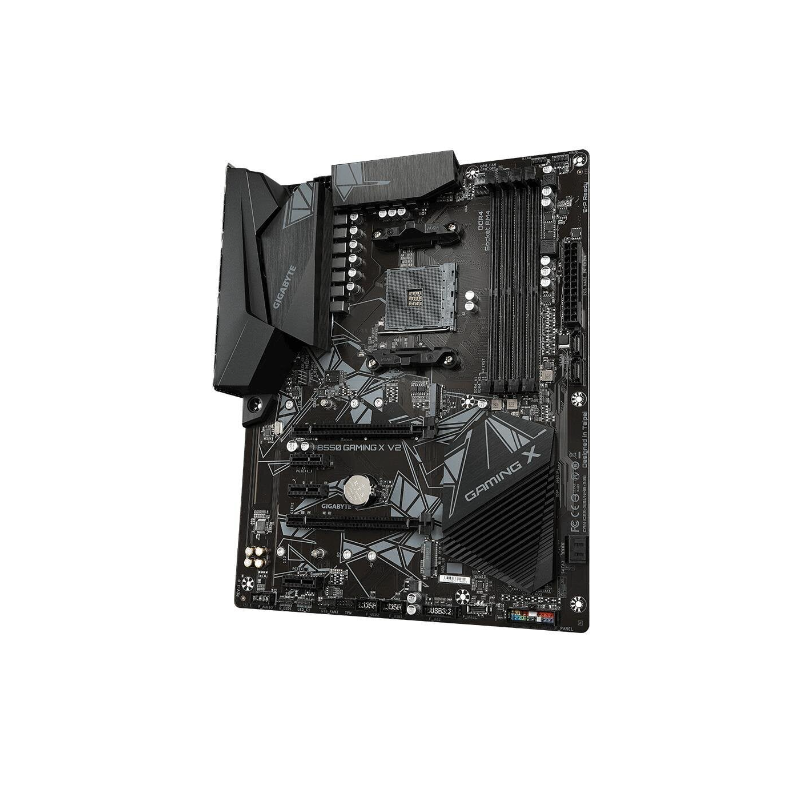

AMD B550 GAMING X V2 Gaming Motherboard

The GIGABYTE B550 GAMING X V2 motherboard is designed for gaming PCs and delivers reliable performance with modern AMD processors.


Chipset: AMD B550

CPU Socket: AM4

Processor Support: AMD Ryzen 3000, 4000G, 5000, and 5000G (excluding Ryzen 5 3400G and Ryzen 3 3200G)

Memory Slots: 4 × DDR4 DIMM (up to 128 GB, up to 4733 MHz OC)

Graphics:

Built-in video outputs: 1 × HDMI 2.1, 1 × DVI-D

Supports resolutions up to 4K at 60 Hz via HDMI




Expansion Slots:

1 × PCIe 4.0 x16 (reinforced), 1 × PCIe 3.0 x16




Storage:

2 × M.2 (1 slot with PCIe 4.0 x4, 1 with PCIe 3.0 x4/SATA)

6 × SATA 6 Gbps (supports RAID 0, 1, 10)




Audio:

7.1-channel sound (Realtek ALC887 HD)

Ports: line-in, line-out, microphone




Network:

1 × LAN port (Realtek 8118 Gaming LAN, up to 1 Gbps)




USB Ports:

Rear panel: 4 × USB 3.2 Gen 1, 2 × USB 2.0

Internal: 2 × USB 3.2 Gen 1, 4 × USB 2.0




Power Supply:

8+2-phase power design with high-quality components




Additional Features:

RGB Fusion 2.0 for lighting control

Q-Flash Plus for BIOS updates without a CPU





Dimensions:


Form factor: ATX (305 × 244 mm)

Package size: 33.7 × 27.18 × 8.72 cm

Weight with packaging: ~1.78 kg


The GIGABYTE B550 GAMING X V2 motherboard is ideal for building high-performance gaming systems. It offers modern functionality, support for high-frequency memory, and high-speed storage connectivity.
