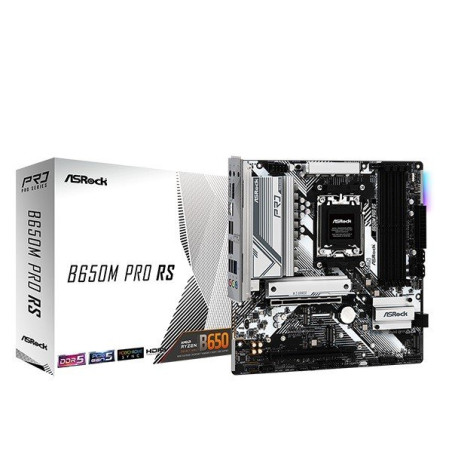

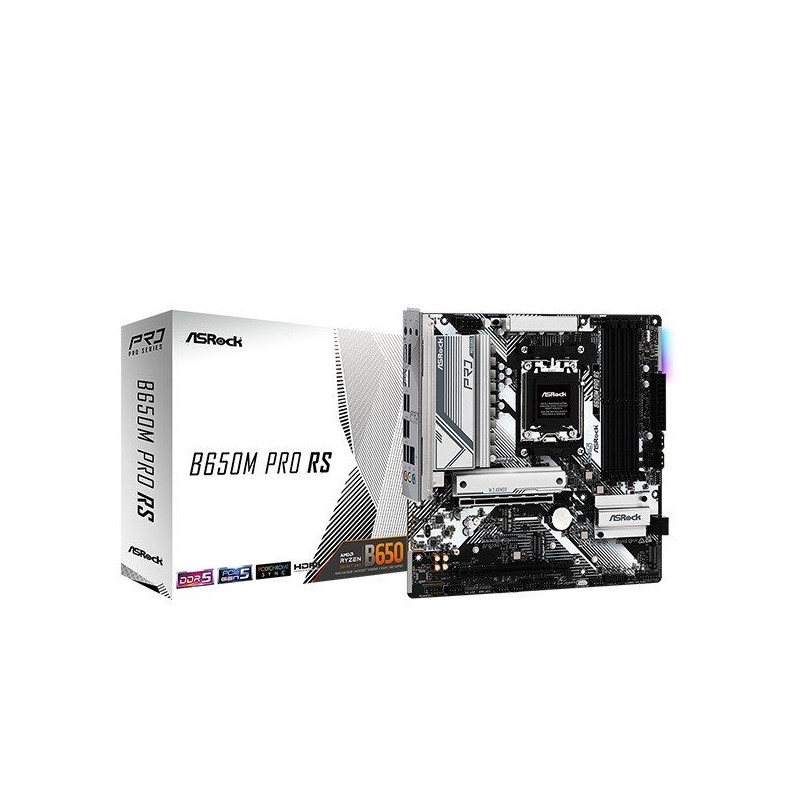

ASRock B650M PRO RS Motherboard mATX / AMD AM5

ASRock B650M PRO RS Motherboard – Specifications
General Information:

Model: B650M PRO RS

Form Factor: Micro ATX

Dimensions: 24.4 x 24.4 cm

Socket: AM5

Chipset: AMD B650

Processor Compatibility: AMD Ryzen (No integrated CPU)


Memory:

Type: DDR5

Slots: 4

Max Frequency: 7200 MHz

Max Capacity: 192 GB


Expansion & Storage:

PCIe Slots:

1 x PCIe 3.0 x16

1 x PCIe 4.0 x16




M.2 Slots: 4

SATA Devices Support: Up to 4

RAID Support: Yes


Connectivity & Networking:

LAN: 1 x 10/100/1000/2500 Mbps

Rear I/O USB Ports: 8

Onboard USB Ports: 9

USB Breakdown:

USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0: 7

USB 3.2 Gen 2 / USB 3.1 Gen 2: 2

USB Type-C: 1





External Connectors:

1 x DisplayPort

1 x HDMI

1 x RJ-45 (LAN)

1 x Line In, Line Out, MIC

4 x USB 2.0

2 x USB 3.0

1 x USB 3.1

1 x USB 3.1 Type-C

2 x SMA (Antenna Connectors)

1 x Flash BIOS Button


Internal Connectors:

Cooling & Power:

1 x 4-pin CPU Fan

1 x 4-pin CPU/Water Pump Fan

3 x 4-pin Chassis Fans

1 x 8-pin 12V Power

1 x 24-pin ATX Power




Storage & USB:

4 x M.2 Slots

4 x SATA III (6Gb/s)

4 x USB 2.0 / 1.1 Headers

4 x USB 3.0 Headers

1 x USB-C Header

1 x Thunderbolt Header




Miscellaneous:

1 x TPM Header

1 x Front Panel Audio Header

1 x Power LED Header

1 x RGB LED Strip Header

3 x Addressable LED Headers
