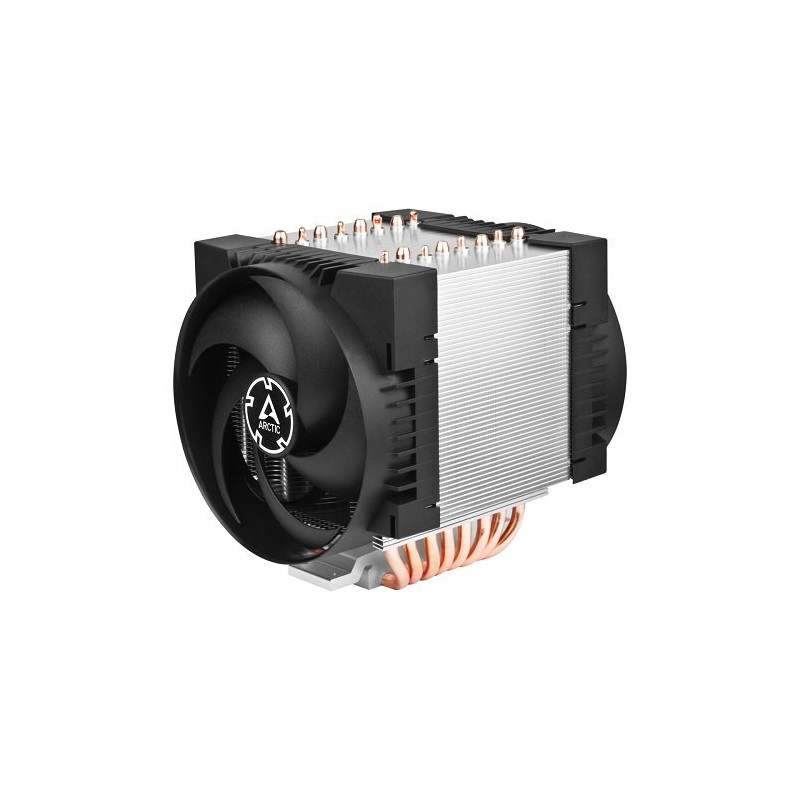

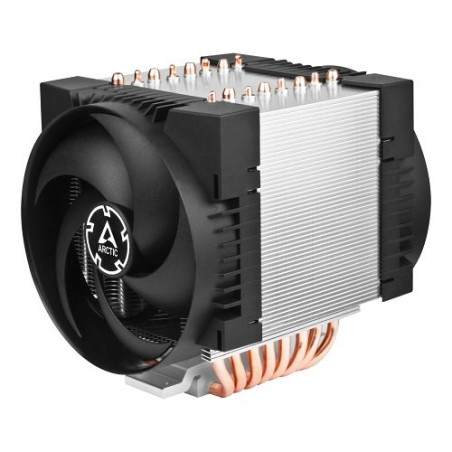

Arctic Freezer 4U-M Rev. 2 CPU Cooler

General Specifications


Thermal Compound: ARCTIC MX-6 0.8 g Syringe included

Dimensions: 124 (L) x 156 (W) x 145 (H) mm

Weight: 1275 g

Operating Ambient Temperature: 0–40 °C


Compatibility


Intel®: LGA 4189, LGA 4677

AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8

Ampere: LGA4926 (separate mounting kit required) *

Server Rack Unit: 4U & up


*An Ampere-compatible variant is available.

Heatsink Specifications


Heat Pipe: Direct Touch, Ø 6 mm x 8

Number of Fins: 57

Fin Material: Aluminium


Fan Specifications


Fan: 2 x 120 mm PWM Fans

Fan Speed: 400–2300 rpm, PWM Controlled

Connector: 4-Pin Plug

Cable Length: 200 mm

Bearing: Dual Ball Bearing

Noise Level: 40 dBA

Air Flow: 71.90 cfm | 122.16 m³/h

Static Pressure: 3.30 mmH2O

Current | Voltage: 0.12 A | 12 V DC

Startup Voltage: 8 V DC
