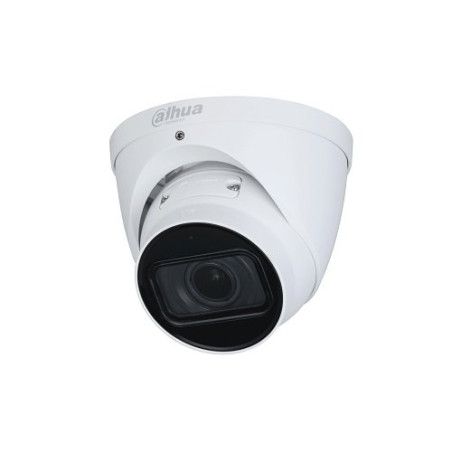

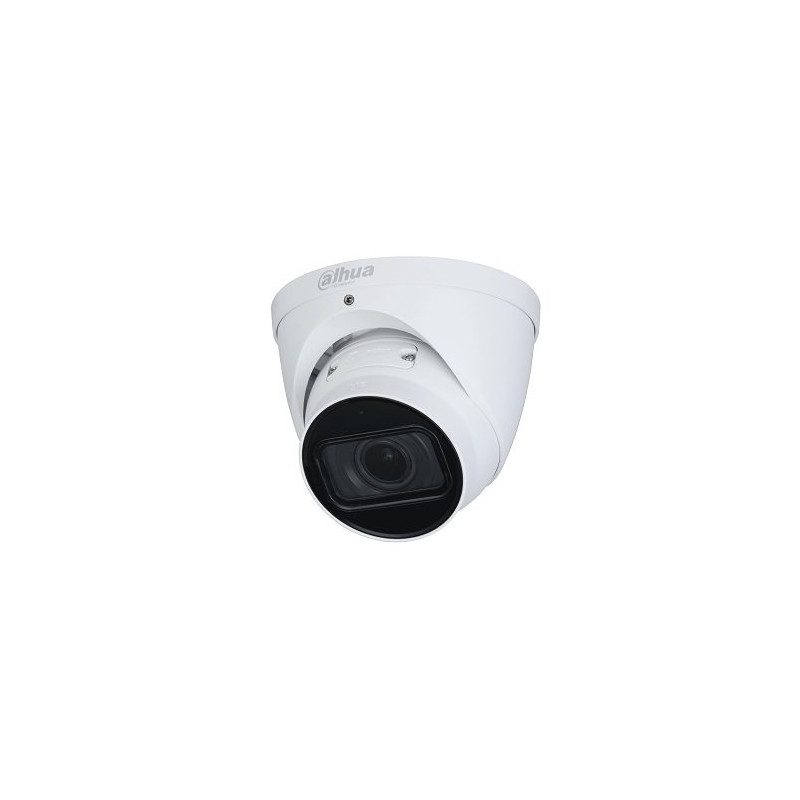

Dahua HDW5442T-ZE IP Network camera 4MP / 2K

Camera
Image Sensor:

Type: 1/1.8” 4 Megapixel Progressive CMOS


Max. Resolution:

Resolution: 2688 (H) × 1520 (V)


Memory:

ROM: 128 MB

RAM: 1GB


Scanning System:

System: Progressive Scan


Electronic Shutter Speed:

Speed: Auto/Manual 1/3 s – 1/100,000 s


Min. Illumination:

Illumination: 0.003Lux @ F1.8


Signal-to-Noise Ratio:

S/N Ratio: >56 dB


Illumination Distance:

Distance: 40 m (131.2 ft) with IR LED


Illuminator On/Off Control:

Control: Auto/Manual


Illuminator Number:

Number: 2 (IR LED)


Pan/Tilt/Rotation Range:

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°



Lens
Lens Type:

Type: Motorized vari-focal


Mount Type:

Type: f14


Focal Length:

Range: 2.7 mm–12 mm


Max. Aperture:

Aperture: F1.8


Field of View:

Horizontal: 114°–47°

Vertical: 62°–26°

Diagonal: 136°–54°


Iris Type:

Type: Auto


Close Focus Distance:

Distance: 1.2 m (3.9 ft)



DORI Distance:



Lens
Detect
Observe
Recognize
Identify




W
58 m (190.3 ft)
23 m (75.5 ft)
12 m (39.4 ft)
6 m (19.7 ft)


T
131 m (429.8 ft)
52 m (170.6 ft)
26 m (85.3 ft)
13 m (42.7 ft)




Smart Event Features:

IVS: Abandoned object, missing object

Heat Map: Yes, Professional and intelligent

Perimeter Protection: Tripwire, intrusion, fast moving (vehicle and human detection), loitering detection, people gathering, parking detection

Face Detection: Face detection, tracking, optimization, snapshot, report high-quality images, face enhancement, exposure, attribute extraction (gender, age, glasses, expressions like anger, calm, happiness, sadness, disgust, surprise, confusion, and fear), face matting settings, snapshot methods (real-time, optimized, quality priority)

People Counting: Counting entry/exit, stay time, and generating reports (yearly/monthly/weekly/daily)

Intelligent Search: Works with Smart NVR to perform refined intelligent search, event extraction, and video merging



Video
Compression:

Types: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)


Smart Codec:

Types: Smart H.265+/H.264+


Frame Rate:

Main Stream:

2688 × 1520 (1 fps–25/30 fps)

1920 × 1080 (1 fps–50/60 fps)




Sub Stream: D1 (1 fps–50/60 fps)

Third Stream: 1080p (1 fps–25/30 fps)


Stream Capability:

Streams: 3


Resolution Options:

Available Resolutions: 2688 × 1520, 2560 × 1440, 2304 × 1296, 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)


Bitrate Control:

Modes: CBR/VBR


Bit Rate:

H.264: 32 kbps–8192 kbps

H.265: 19 kbps–8192 kbps


Day/Night Mode:

Modes: Auto (ICR), Color, Black & White


Features:

BLC: Yes

HLC: Yes

WDR: 140 dB

Scene Self-adaptation: Yes

White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom

Gain Control: Auto/Manual

Noise Reduction: 3D DNR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Electronic Image Stabilization (EIS): Yes

Smart Illumination: Yes

Defog: Yes

Image Rotation: 0°/90°/180°/270° (support with resolutions 2688 × 1520 and lower)

Mirror: Yes

Privacy Masking: 4 areas



Audio

Built-in Microphone: Yes

Audio Compression: G.711a, G.711Mu, G.726, AAC, G.723



Alarm Events

Events: SD card missing, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, defocus detection, scene changing, tripwire, intrusion, abandoned object, missing object, fast moving, parking detection, loitering detection, people gathering, audio detection, people counting, face detection, voltage detection, people counting in area, stay alarm, people count exception detection, queue management



Network

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Protocol Support: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, 802.1x, SNMP

Interoperability: ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P

User/Host Capacity: 20 users (Total bandwidth: 80 M)

Storage Options: FTP, SFTP, Micro SD Card (up to 256 GB), Dahua Cloud, NAS

Browser Compatibility: IE8 and later, Chrome, Firefox, Safari 12 and later

Management Software: Smart PSS, DSS, DMSS

Mobile Support: iOS, Android



Certification

Certifications:

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07






Power

Power Supply: 12V DC (±30%) / PoE (802.3af)

Power Consumption: <7.5W



Environmental

Operating Conditions: –30°C to +60°C (–22°F to +140°F), < 95% RH

Storage Conditions: –40°C to +60°C (–40°F to +140°F)

Protection Grade: IP67
