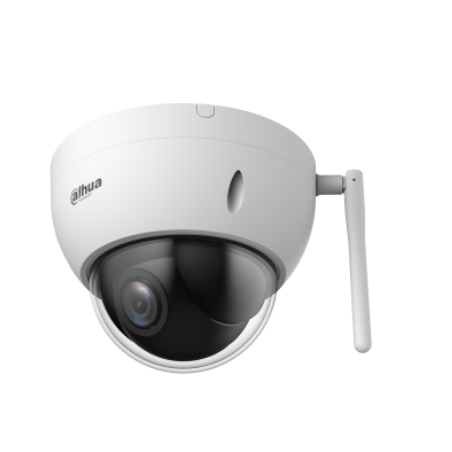

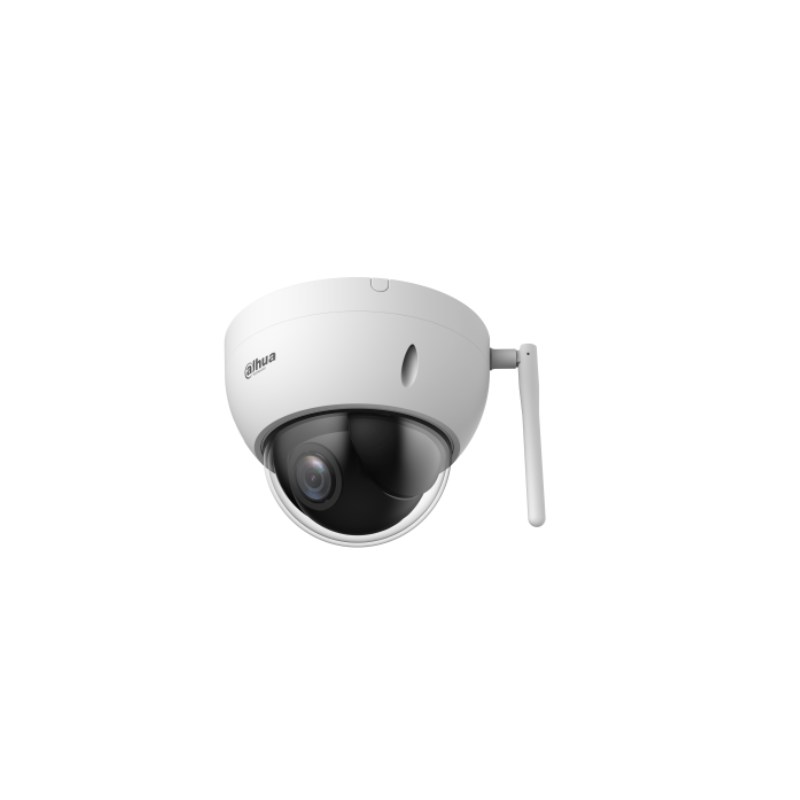

Dahua SD22204DB-GNY-W IP Network camera 2MP

2 MP Dahua WizSense PTZ IP camera with 4× optical zoom, PoE and Wi‑Fi support, housed in IP66-rated vandal-resistant IK10 casing. Equipped with AI features including face detection and object classification.

Specifications:



Sensor: 1/2.8″ STARVIS™ CMOS, 2 MP (1920 × 1080)




Lens: 2.8–12 mm motorized, 4× optical zoom (F1.6–F3.0)




Field of view: H: 99.1°–31.9°, diagonal 117.7°–36.6°




Frame rate: up to 25/30 fps at 1080p




Compression: Smart H.265+, H.264, MJPEG




IR: none (Starlight low‑light technology)




DORI distance:



Detect: up to 165.5 m




Observe: up to 65.4 m




Recognize: up to 33.1 m




Identify: up to 16.6 m







Pan/Tilt: 0°–355° pan, 0°–90° tilt; up to 100°/s pan, 60°/s tilt




IVS: tripwire, intrusion, abandoned/missing object, parking, human/vehicle classification, Face Detection, SMD 3.0




Digital zoom: up to 16×




Storage: MicroSD up to 512 GB, NAS/FTP; ROM 128 MB, RAM 256 MB




Connectivity: Wi‑Fi (802.11b/g/n, 2.4 GHz, up to 150 Mbps), PoE (802.3af) or 12 V DC (1 A ±10%), max. 6.1 W




Housing: metal, IP66, IK10, lightning protection 6000 V




Operating temperature: –30…+60 °C, humidity ≤ 95%




Dimensions: Ø89 mm × 122 mm
