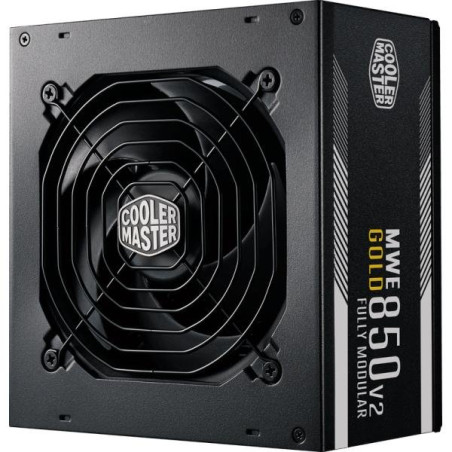

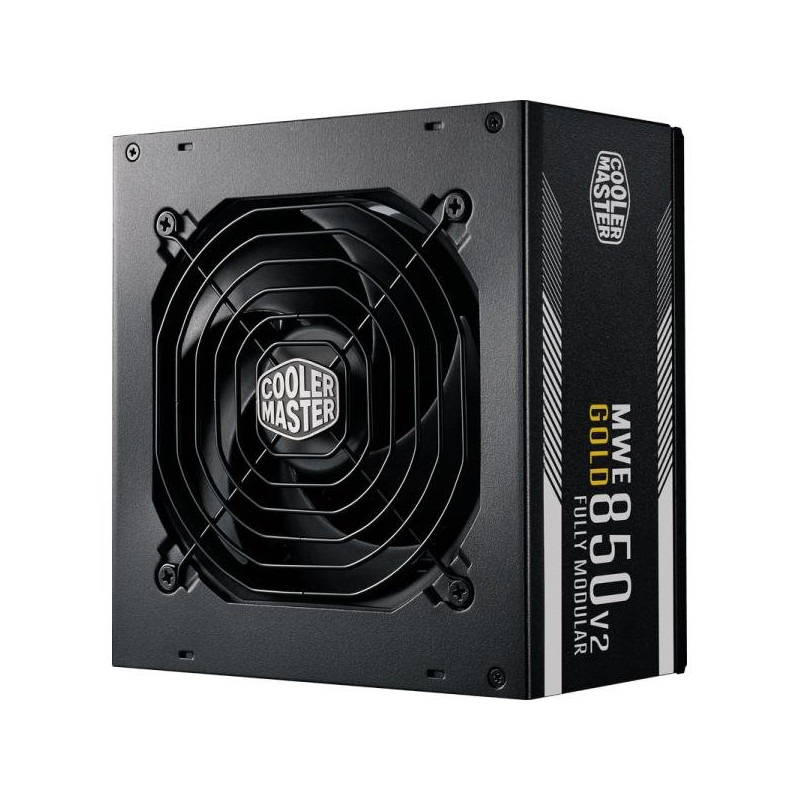

Cooler Master MWE Gold 850 V2 Power supply 850W

Power management



Total power: 850 W




Efficiency: 90 %




PFC type: Active




Hold-up time: 16 ms




Power protection description: Under voltage, Short circuit, Over voltage, Over total voltage, Overload, Over current




Total current (+3.3V): 100 W




Total current (+12V): 849.6 W




Total current (+5V): 100 W




Total current (-12V): 3.6 W




Total current (+5Vsb): 15 W




Max output current (+3.3V): 20 A




Max output current (+12V): 70.8 A




Max output current (+5V): 20 A




Max output current (-12V): 0.3 A




Max output current (+5Vsb): 3 A




Input current: 6 – 12 A




AC input frequency: 50/60 Hz




AC input voltage: 100 – 240 V




Connectivity



Motherboard power connector: 24-pin ATX




ATX power connector: Yes




SATA power connectors: 12




Peripheral (Molex) power connectors (4-pin): 4




EPS power connector (8-pin): Yes




PCI Express power connector (6+2 pin): 4




Cable type: Fully modular




Motherboard power cable length: 610 mm




SATA power cable lengths: 500, 620, 740, 860 mm




Peripheral (Molex) cable lengths: 860, 500, 740, 620 mm




EPS connector (4+4 pin): Yes




Performance



Target: PC




80 PLUS certification: 80 PLUS Gold




MTBF: 100,000 h




Fan shaft type: HDB




ATX version: 3.1




PSU form factor: ATX




Design



Fan diameter: 120 mm




Number of fans: 1




Cooling type: Active




Fan position: Top




Integrated on/off switch: Yes




Product color: Black




Certificates



Certification: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA




Technical details



Sustainability certifications: ErP




Weight & dimensions



Weight: 2.62 kg




Height: 86 mm




Width: 150 mm




Depth: 160 mm




Environmental conditions



Operating temperature: 0 – 50 °C




Packaging information



Package weight: 2,900 g




Package depth: 310 mm




Package height: 120 mm




Package width: 194 mm




Package type: Box
