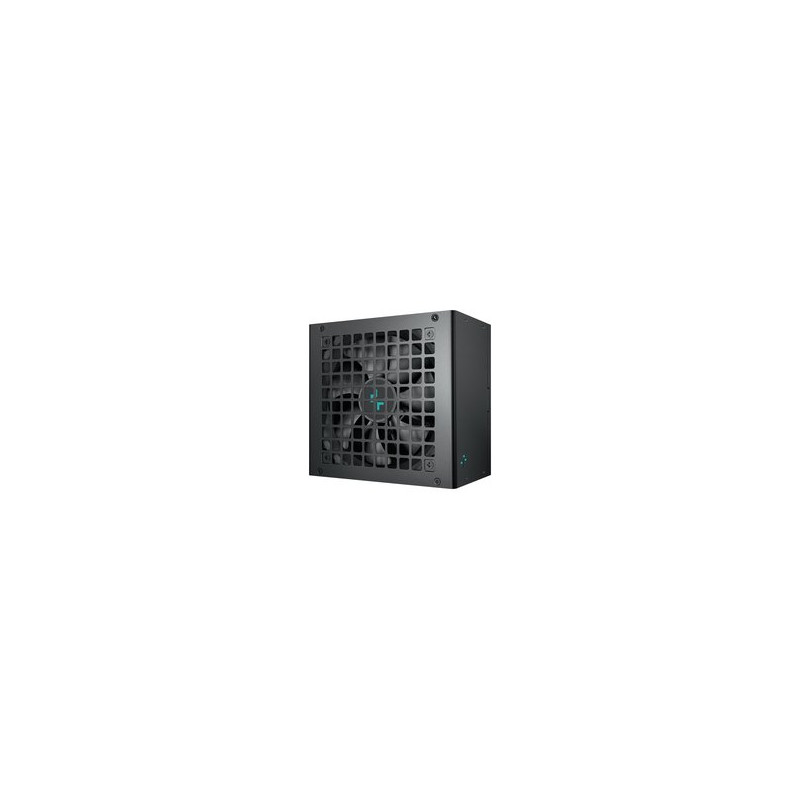

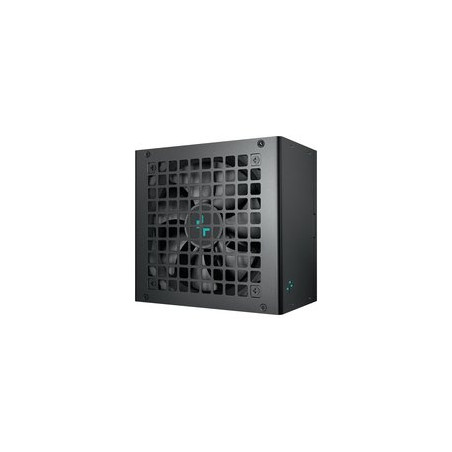

DeepCool PL650D Power Supply 650W

Power ManagementTotal Power: 650 WEfficiency: 85 %Power Factor Correction (PFC) Type: ActiveHold-up Time: 16 msPower Protection Description: Under voltage, Over voltage protection, Surge & inrush protection (SIP), Overheating, Overvoltage, Overload, Overcurrent, No load operationTotal Current (+3.3V): 100 WTotal Current (+12V): 648 WTotal Current (+5V): 100 WTotal Current (-12V): 3.6 WTotal Current (+5Vsb): 15 WMaximum Output Current (+3.3V): 20 AMaximum Output Current (+12V): 54 AMaximum Output Current (+5V): 20 AMaximum Output Current (-12V): 0.3 AMaximum Output Current (+5Vsb): 3 AInput Current: 9 - 4.5AC Input Frequency: 50/60AC Input Voltage: 100 - 240Power Good Signal Delay Range: 100 - 150

ConnectivityMotherboard Power Connector: 20+4 pin ATXNumber of SATA Power Connectors: 6Peripheral (Molex) Power Connectors (4-pin): 2ATX Power Connector (20 + 4 pin): YesCPU Power Connector (4 + 4 pin): YesPCI Express Power Connector (6+2 pins): 3Cable Type: Non-modularMotherboard Power Cable Length: 550 mmSATA Power Cable Length: 550, 450, 650PCI Express Power Connectors (16 pins): 1

PerformancePurpose: PC (computer)80 PLUS Certification: 80 PLUS BronzeMean Time Between Failures (MTBF): 100000 hFan Shaft Type: HYBATX Version: 3.0PSU Form Factor: ATX

DesignFan Diameter: 120 mmNumber of Fans: 1 fan/fansCooling Type: ActiveFan Position: HeadIntegrated On/Off Switch: YesProduct Color: Black

CertificationsCertification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RHCompliance Certifications: WEEE, RoHS

Technical DetailsSustainability Compliance: YesSustainability Certifications: Triman, ErP

Weight & DimensionsHeight: 86 mmWidth: 150 mmDepth: 140 mm

Environmental ConditionsOperating Temperature Range (T-T): 0 - 40

Package InformationPackage Type: Box
