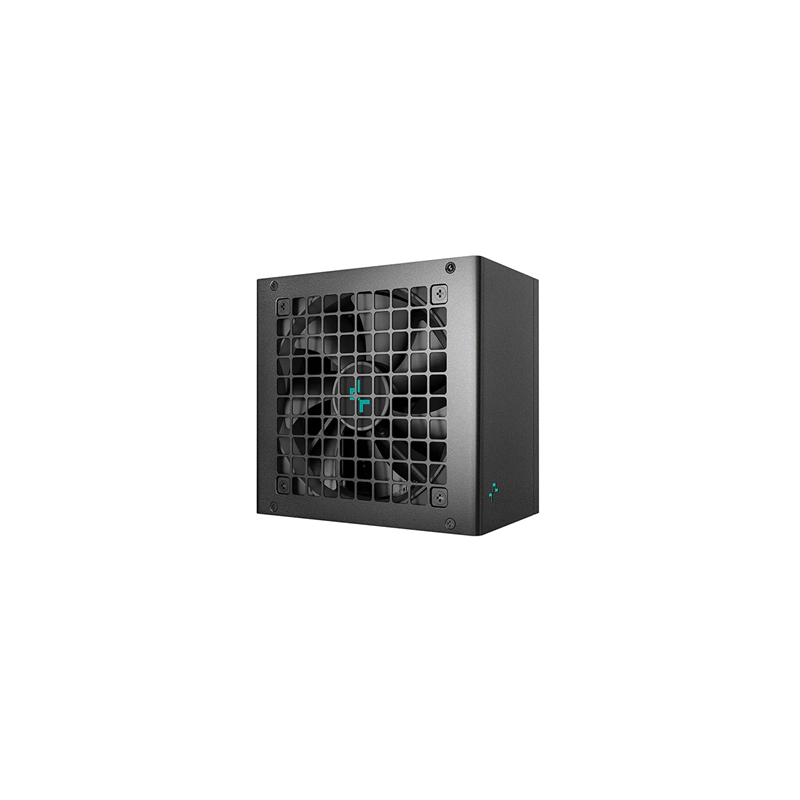

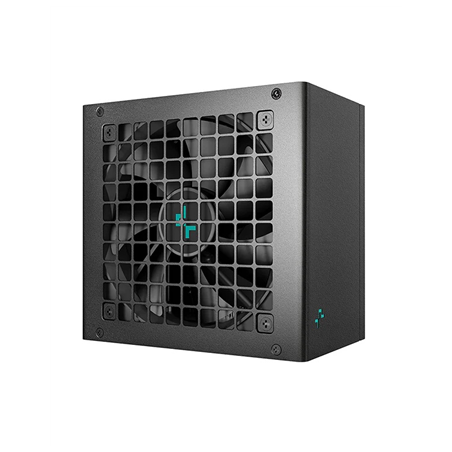

DeepCool PN750M Power Supply 750W

Power ManagementTotal Power: 750 WEfficiency: 90 %Power Factor Correction (PFC) Type: ActiveHold-up Time: 16 msPower Protection Description: Under voltage, Over voltage protection, Surge & inrush protection (SIP), Short circuit, Overheating, Overvoltage, Overload, No load operationTotal Current (+3.3V): 110 WTotal Current (+12V): 750 WTotal Current (+5V): 110 WTotal Current (-12V): 3.6 WTotal Current (+5Vsb): 15 WMaximum Output Current (+3.3V): 20 AMaximum Output Current (+12V): 62.5 AMaximum Output Current (+5V): 20 AMaximum Output Current (-12V): 0.3 AMaximum Output Current (+5Vsb): 3 AInput Current: 10 - 5AC Input Frequency: 50/60AC Input Voltage: 100 - 240Power Good Signal Delay Range: 100 - 150

ConnectivityMotherboard Power Connector: 20+4 pin ATXNumber of SATA Power Connectors: 8Peripheral (Molex) Power Connectors (4-pin): 2ATX Power Connector (20 + 4 pin): YesCPU Power Connector (4 + 4 pin): YesPCI Express Power Connector (6+2 pins): 3Cable Type: Fully modularMotherboard Power Cable Length: 550 mmSATA Power Cable Length: 450, 570, 690, 810CPU Power Cable Length: 700 mmPeripheral (Molex) Power Cable Length: 930 mmPCI Express Power Connectors (16 pins): 1

PerformancePurpose: PC (computer)80 PLUS Certification: 80 PLUS GoldMean Time Between Failures (MTBF): 100000 hFan Shaft Type: FDBATX Version: 3.1PSU Form Factor: ATX

DesignFan Diameter: 120 mmNumber of Fans: 1 fan/fansCooling Type: ActiveFan Position: HeadIntegrated On/Off Switch: YesProduct Color: Black

CertificationsCompliance Certifications: CCC, WEEE, RoHS, RCM, Federal Communications Commission, EAC, CE

Technical DetailsSustainability Certifications: ErP, Triman

Weight & DimensionsHeight: 86 mmWidth: 150 mmDepth: 140 mm

Environmental ConditionsOperating Temperature Range (T-T): 0 - 40

Package InformationPackage Type: BoxIncluded Cables: SATA, Peripheral (Molex), PCIe, CPU, ACCable Ties Included: Yes
