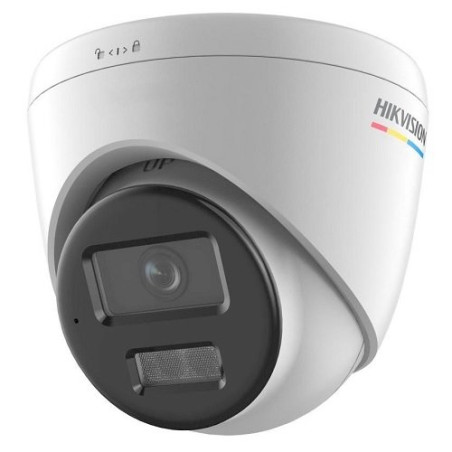

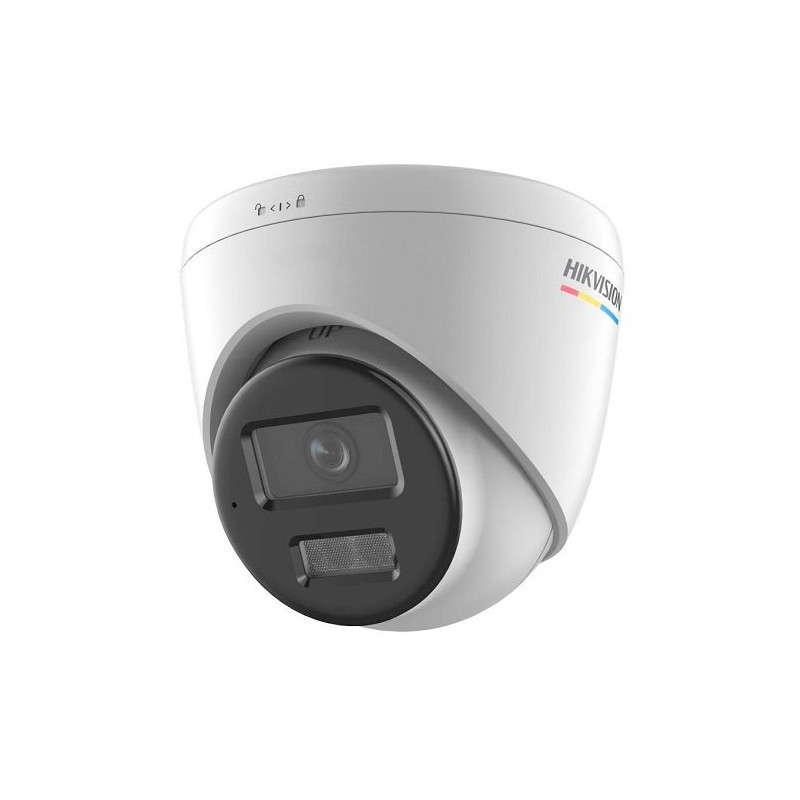

Hikvision DS-2CD1347G2H-LIUF 2.8mm IP Camera, Black

DS-2CD1347G2H-LIUF 4 MP Fixed Turret Network Camera ColorVu with Smart Hybrid Light



Features

• Model: Dome, DS-2CD1347G2H-LIUF, 2.8mm, white

• High quality imaging with 4 MP resolution

• Support Human and Vehicle Detection

• Smart Hybrid Light: advanced technology with long range

• Built-in microphone for real-time audio security

• Efficient H.265+ compression technology

• Water and dust resistant (IP67)



Specifications



Camera

• Image Sensor: 1/3" Progressive Scan CMOS

• Max. Resolution: 2560 × 1440

• Min. Illumination Color: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°



Lens

• Lens Type: Fixed focal lens, 2.8mm

• Focal Length & FOV: 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.0

• DORI 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m



Illuminator

• Supplement Light Type: IR, White Light

• Supplement Light Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm



Video

• Main Stream:

• 50 Hz: 20 fps (2560 × 1440); 25 fps (1920 × 1080, 1280 × 720)

• 60 Hz: 20 fps (2560 × 1440); 24 fps (1920 × 1080, 1280 × 720)

• Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

• 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression:

• Main stream: H.265+/H.265/H.264+/H.264

• Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

• Scalable Video Coding (SVC): H.264 and H.265 encoding



Audio

• Audio Type: Mono sound

• Environment Noise Filtering: Yes

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Audio Sampling Rate: 8 kHz/16 kHz



Network

• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

• Simultaneous Live View: Up to 6 channels

• API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK

• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user

• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

• Client: iVMS-4200, Hik-Connect

• Web Browser: Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+




• Wide Dynamic Range (WDR): 120 dB

• SNR: > /= 52 dB

• Day/Night Switch: Day, Night, Auto, Schedule

• Image Enhancement: BLC, HLC, 3D DNR

• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

• Privacy Mask: 4 programmable polygon privacy masks



Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-in Microphone: Yes

• Reset Key: -F: Yes



Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

• Linkage: Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP, notify surveillance center, send email, trigger capture



General

• Power: 12 VDC ± 25%, 0.5 A, max. 6.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W

• Material: Metal & Plastic

• Dimension: Ø110 mm × 93 mm (Ø4.33" × 3.66")

• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

• Weight: Approx. 420 g (0.9 lb.)

• With Package Weight: Approx. 656 g (1.4 lb.)

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email

• Language: English, Ukrainian



Approval

• EMC:

• CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

• RCM: AS/NZS CISPR 32: 2015

• IC: ICES-003: Issue 7• Safety:

• UL: UL 62368-1

• CB: IEC 62368-1: 2014+A11

• CE-LVD: EN 62368-1: 2014/A11: 2017

• BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment:

• CE-RoHS: 2011/65/EU

• WEEE: 2012/19/EU

• Reach: Regulation (EC) No 1907/2006

• Protection IP67: IEC 60529-2013
