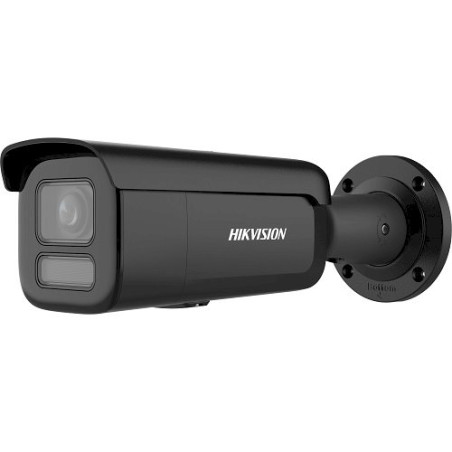

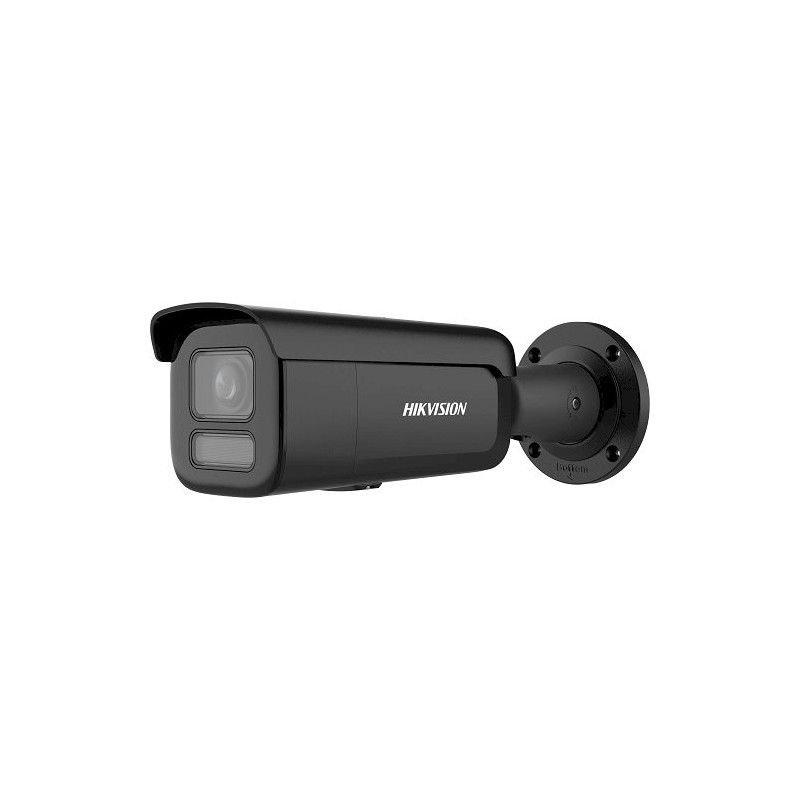

Hikvision DS-2CD2647G2HT-LIZS IP Camera

4 MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network Camera



Model: DS-2CD2647G2HT-LIZS, black



Features

• High quality imaging with 4 MP resolution

• Smart Hybrid Light: advanced technology with long range

• Clear imaging against strong back light due to 130 dB WDR technology

• Efficient H.265+ compression technology

• Focus on human and vehicle targets classification based on deep learning

• Motorized varifocal lens for easy installation and monitoring

• Water and dust resistant (IP67)



Specifications



Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max. Resolution: 2688 × 1520

• Min. Illumination: Color: 0.0008 Lux @ (F1.2, AGC ON), 0 Lux with light

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°



Lens

• Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm

• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°

• Lens Mount: Integrated

• Iris Type: Fixed

• Aperture: F1.2

• Depth of Field: 1 m to infinite

• DORI Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

• DORI Tele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m



Illuminator

• Supplement Light Type: IR, White Light

• Supplement Light Range: Up to 60 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm



Video

• Main Stream:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Third stream is supported under certain settings

• Video Compression:

• Main stream: H.265+/H.265/H.264+/H.264

• Sub-stream: H.265/H.264/MJPEG

• Third stream: H.265/H.264

• Third stream is supported under certain settings

• Video Bit Rate: 32 Kbps to 8 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR, VBR

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed region for main stream and sub-stream



Audio

• Environment Noise Filtering: Yes

• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)

• Audio Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz



Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user

• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

• Client: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+




• Image Parameters Switch: yes

• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

• Day/Night Switch: Day, Night, Auto, Schedule

• Image Enhancement: BLC, HLC, 3D DNR

• Wide Dynamic Range (WDR): 130 dB

• SNR: > /= 52 dB

• Privacy Mask: 4 programmable polygon privacy masks



Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB• Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KOhm, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ohm, interface type: non-equilibrium

• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

• Reset Key: Yes



Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output

• Smart Event: Scene change detection



Deep Learning Function

• Face Capture: Yes

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)



General

• Power: 12 VDC ± 25%, 1.21 A, max. 14.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 18 W

• Material: Front cover: Metal, body: Metal, bracket: Metal

• Dimension: 298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")

• Package Dimension: 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")

• Weight: Approx. 1085 g (2.4 lb.)

• With Package Weight: Approx. 1639 g (3.6 lb.)

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



Approval

• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment: CE-RoHS: 2011/65/EU

• Protection IP67: IEC 60529-2013
