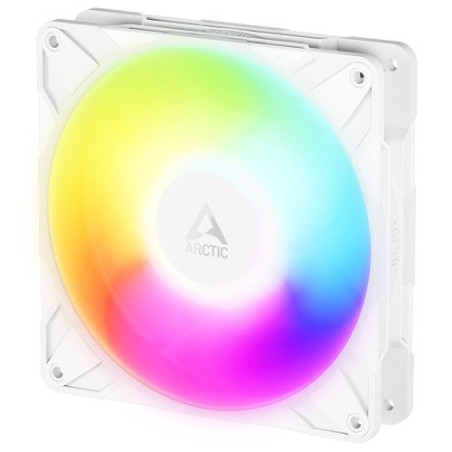

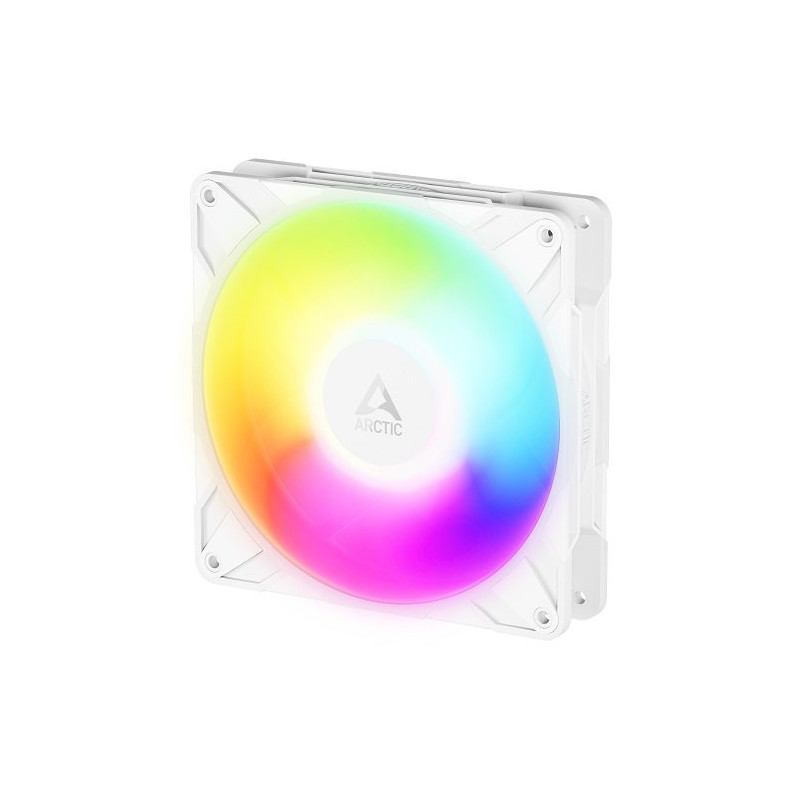

ARCTIC P14 PRO Reverse PWM PST A-RGB High-Performance Fan 4-pin 140mm White

PWM Fan P14 Pro Reverse A-RGB



• Type: PWM fan

• Model: P14 Pro Reverse A-RGB

• Size: 140 mm

• Color: white with A-RGB



Features

• Reversed Airflow: designed for air intake from the back side

• Suitable where conventional fans would compromise aesthetics

• Efficient performance at high air resistance

• High static pressure for effective airflow through tight spaces

• Ideal for radiators, perforated panels, and mesh filters

• PST – PWM-based synchronized fan control

• Additional PWM connector allows multiple fans to be synchronized in series using a single header

• Maximum performance

• Revised fan blade design for an optimal balance of performance and smooth operation

• Optimized Bearing-Shaft Design (FDB)

• Hydrodynamic bearing with extended shaft for quieter operation

• Improves pressure distribution and minimizes vibrations

• SOTA Microcontroller

• Reduces motor noise

• Compensates for load fluctuations

• Protects against inrush currents and reverse polarity

• More Power – Less Noise

• Automated measuring and balancing process for smooth performance

• Balancing compound applied with pinpoint accuracy

• Minimum Gap Dimensions for Maximum Efficiency

• Enables higher static pressure and maximum airflow efficiency



Specifications

• Fan speed: 400–2650 RPM, PWM controlled

• 0 RPM below 5% PWM

• Air flow: 98 CFM / 166.5 m³/h

• Static pressure: 5.1 mm/H2O

• Fan bearing: Fluid Dynamic Bearing

• Current / voltage: 0.4A / 12V DC

• Connection: 4-Pin Fan Plug + 4-Pin Socket

• Cable length: 400 mm + 80 mm Daisy-Chain Cable

• LED: 12x A-RGB Gen2

• RGB voltage / current: 5V DC / 0.40A

• LED connector: 3-Pin A-RGB Plug + 3-Pin Socket

• Size: 140 x 140 x 30 mm

• Weight: 253 g



Warranty

• 6 years
