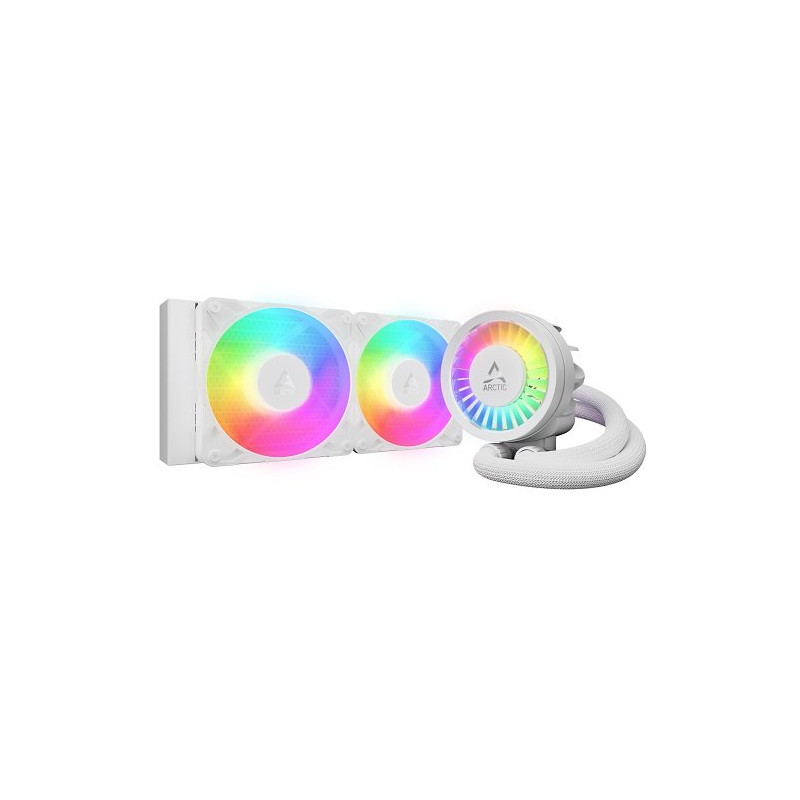

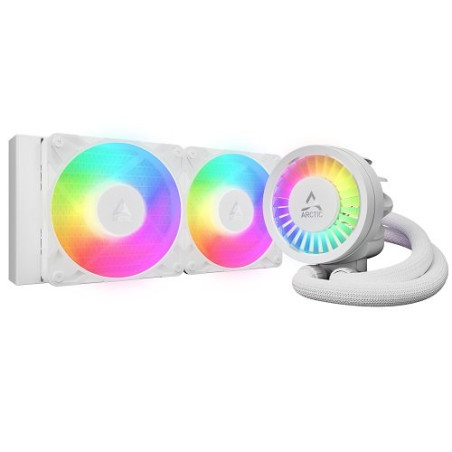

ARCTIC Liquid Freezer III PRO 240 A-RGB CPU Cooler

Arctic Liquid Freezer III Pro 240 with A-RGB



Compatibility

• Intel Alder Lake and Raptor Lake LGA1700 processors

• Intel LGA1851 for Arrow Lake

• AMD AM5

• AMD AM4

• Intel 1700



Features

• Wide compatibility CPU cooler

• Pro version uses new P12 Pro fans with a 7-blade design for higher airflow and static pressure

• Improved cooling efficiency, especially at high loads

• 38 mm thick radiator with cooling surface extended by 23 % by increasing the fin stack

• Improved heat dissipation

• Larger liquid volume

• Heat build-up in the water cooling system is slowed down

• Power and temperature peaks can be managed effectively over a longer period of time

• Specially developed PWM-controlled water pump

• Pump further optimised for performance and noise

• Improved coldplate with extended fin surface and optimised water pipes

• Quiet operation with increased performance

• Two connection cables provide two control options

• Entire unit can be controlled via a single connection, with radiator fan speed output

• Pump, VRM and radiator fans can be controlled via a single PWM setting

• Separate regulation via splitter cable with three separate connections

• Pump, VRM fan and radiator fan can be controlled independently

• VRM fan speed can be controlled independently of the CPU and adjusted analogue to the temperature of the voltage converters via PWM

• ARCTIC's new A-RGB fans allow multi-color lighting effects

• Advanced A-RGB technology and customizable LEDs

• Note: Some motherboards are incompatible due to oversized SSD coolers in the M.2_1 slot

• Compatibility check: https://support.arctic.de/lf3-compatibility



Arctic P12 Pro Fan Benefits

• Higher static pressure increases cooling efficiency

• Extended RPM range

• More performance at any speed

• Longer service life

• PWM for synchronous fan control

• High quality bearing

• A-RGB lighting effects



Specifications

• Pump speed: 800 - 2800 RPM

• Pump voltage/current: 12V DC / 0.35A

• Plate material: copper

• Tube length: 450 mm

• Tube diameter: outer 12.4 mm, inner 6.0 mm

• VRM fan speed: 400 - 2500 RPM

• VRM voltage/current: 12V DC / 0.05A

• Thermal paste: MX-6 (0.8g)

• Fan: 2x P12 Pro

• Fan speed: 600 - 3000 RPM

• Air flow: 77 CFM / 131 m³/h

• Static pressure: 6.9 mm H2O

• Connector: 4-Pin PWM

• Bearing: Fluid dynamic bearing

• Fan voltage/current: 12V DC / 0.33A

• Dimensions: 277 x 120 x 38 mm

• Weight: 1675 g

• LED: 12x A-RGB Gen2 Leds

• RGB voltage/current: 5V DC / 0.40A

• Color: white body, optional lighting



Warranty

• 6 years
