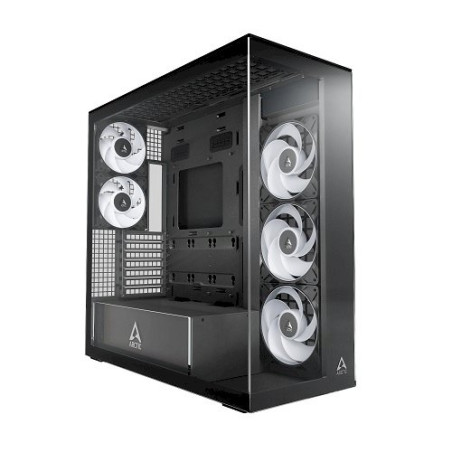

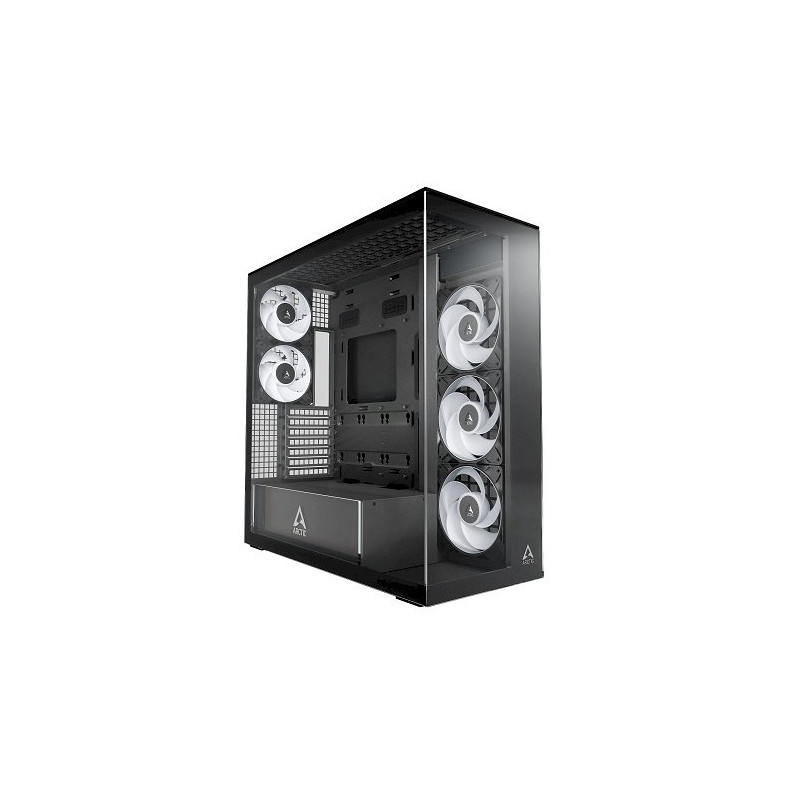

ARCTIC Premium E-ATX PC Case Xtender

Arctic Xtender Premium E-ATX PC Case, Black (Clear Glass)



Features

• High-airflow panorama case for maximum air circulation.

• Five pre-installed fans ensure efficient cooling of high-performance components.

• The power supply unit (PSU) will be mounted approximately 20 mm above the bottom to ensure an optimal supply of fresh air.

• Compatibility for 120 or 140 mm Fans: Modular, removable fan brackets for installing 140 mm fans at the top or on the side.

• Supports Two 420 mm Radiators: Supports two 420, 360, 280 or 240 mm radiators for high-performance AIOs and custom loops.

• Magnetic Mesh Filters: Easily removable, reinforced filters protect against dust and allow quick cleaning.

• Five preinstalled Fans: P12 Pro A-RGB x2 + P14 Pro A-RGB x3.

• Functional I/O Panel: No frills. Only the most important and frequently used ports are included.

• Tempered Glass Side Panels: Large tempered glass windows provide a clear view of the hardware.

• A-RGB PSU Cover: Integrated glass panel with 24 A-RGB LEDs illuminates the lower section of the case.

• Flexible Mounting for Up to Six Drives: Supports three 2.5" drives behind the motherboard tray. Removable drive cage holds two 3.5"/2.5" and one additional 2.5" drive.

• Includes Accessory Box: Includes extra screws, cable ties and space for additional small parts.

• 3D Cable Pass-Throughs for Improved Aesthetics: For clean cable routing behind the motherboard and a tidy interior.

• Clean Cable Management: Smart cutouts and optimally placed cable straps for easy cable management.



Specifications

• Supported motherboard: up to E-ATX format (up to 285 mm wide).

• Supported fans: Top: 3x 120 mm | 3x 140 mm; side: 3x 120 mm | 3x 140 mm (included); rear: 2x 120 mm (included).

• Supported radiators: top: 240 / 280 / 360 / 420 mm; side: 240 / 280 / 360 / 420 mm.

• Supported CPU cooler: up to 171 mm height.

• Supported power supply unit (PSU): ATX up to 318 mm length (up to 200 mm when using HDD bracket).

• Supported graphics card (GPU): up to 482 mm length (up to 337 mm with side radiator).

• Drive bays: behind the motherboard tray: 3x 2.5"; HDD brackets: 2x 3.5" / 2.5" + 1x 2.5".

• PCI slots: 7.

• Cable management space: 35 mm.

• Dust filters: top, right side.

• Operating temperature: 0-40 °C.

• Net weight: 15.4 kg.

• Volume: 64 l.

• Dimensions: 529 (L) x 231 (W) x 529 (H) mm.



Front I/O Panel

• USB Type-C (USB 3.2 Gen2x1 - 10 Gbps)

• 2x USB-A (USB 3.2 Gen1x1 - 5 Gbps)

• 3.5 mm audio jack (input/output)

• Power button



Power Supply Unit (PSU) RGB Strip Specifications

• LED count: 24x A-RGB Gen2.

• RGB voltage/current: 5V DC / 0.89A.

• Connector: 3-pin A-RGB plug + socket.



Fan Specifications



2x P12 Pro A-RGB (pre-installed at the rear)

• Speed: 600-3000 RPM.

• Airflow: 77 CFM | 131 m3/h.

• Static pressure: 6.9 mmH2O.

• Bearing: Fluid dynamic bearing.

• Current / Voltage: 0.33A / 12V DC.

• Connector: 4-pin fan plug + socket.

• LED count: 12x A-RGB Gen2.

• RGB voltage / current: 5V DC / 0.40A.

• LED connector: 3-pin A-RGB plug + socket.



3x P14 Pro Reverse A-RGB (pre-installed on the side)

• Speed: 400-2650 RPM.

• Airflow: 98 CFM | 166.5 m3/h.

• Static pressure: 5.1 mmH2O.

• Bearing: Fluid dynamic bearing.

• Current / Voltage: 0.40A / 12V DC.

• Connector: 4-pin fan plug + socket.

• LED count: 12x A-RGB Gen2.

• RGB voltage / current: 5V DC / 0.40A.

• LED connector: 3-pin A-RGB plug + socket.



Warranty

• 6 years.
