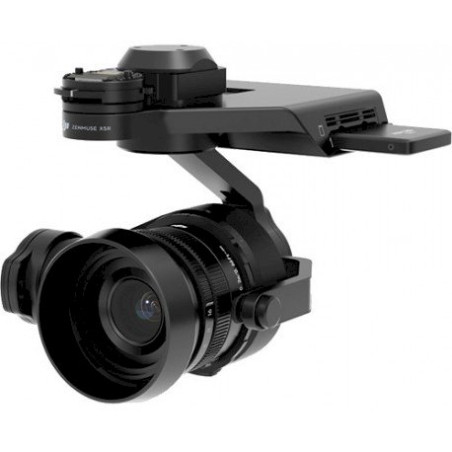

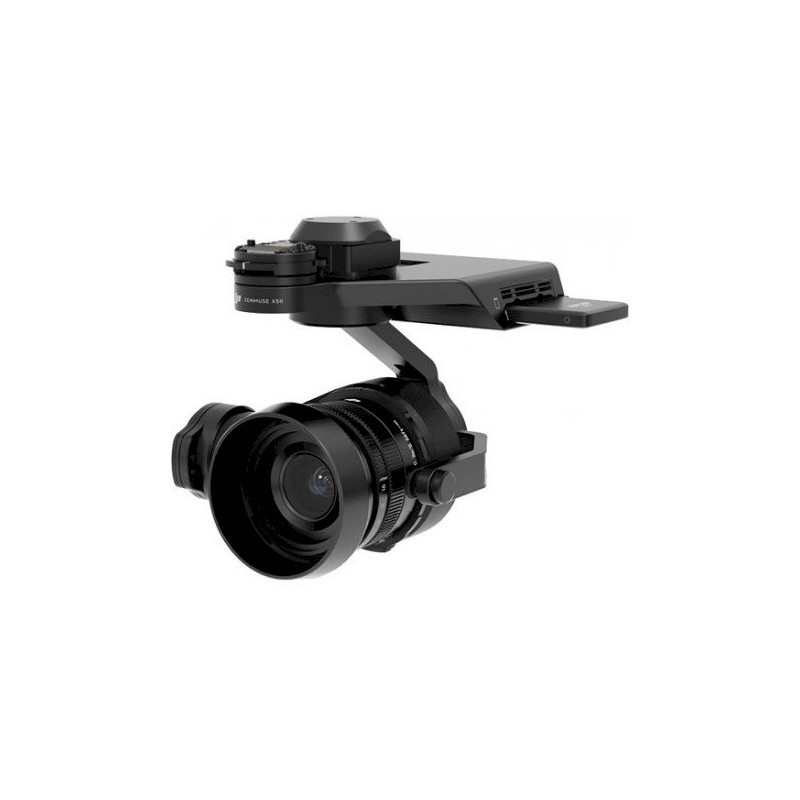

DJI Zenmuse X5R + 15mm f/1.7 ASPH Camera Lens

Short description

The DJI Zenmuse X5R + 15mm f/1.7 ASPH Camera Lens is a professional Micro Four Thirds aerial camera system for the Inspire 1 series. It combines a 4/3" CMOS sensor, RAW recording support, and the included DJI MFT 15mm f/1.7 ASPH lens for aerial filming and photography.

Technical Specifications:
- Name: DJI Zenmuse X5R + 15mm f/1.7 ASPH Camera Lens
- Product type: Micro Four Thirds aerial camera
- Intended use: Professional drone filming and photography
- Compatibility: Inspire 1 series
- Sensor size: 4/3"
- Sensor type: CMOS
- Effective pixels: 16.0M
- ISO range: 100~25600
- Default lens: DJI MFT 15mm F/1.7 ASPH
- Iris: F/1.7-F/16
- Diagonal field of view: 72°
- Equivalent focal length: 30mm
- Focus range: 20cm-infinite
- Auto-focus: Supported
- Burst shooting: Full pixels 7 fps
- Shutter speed: 8~1/8000 sec
- Exposure compensation: -3~+3, 1/3
- AEB: Supported
- Interval shooting: Supported
- Time lapse: Supported, 5/7/10/20/30 sec
- DNG: Supported
- Exposure modes: P/S/A/M/C
- AE metering: Auto / spot metering
- AE lock: Supported
- White balance: Auto / manual / spot
- Focus mode: 256-zone / Pinpoint / Touch focus available
- AF AUX: Supported
- Focus peaking: Supported
- Zebra: Supported
- Image styles: sRGB, Color looks, LOG, Cine-D, D-LOG (RAW)
- HDR photo: Supported
- Software: DJI CineLight (Mac)
- Video resolution: 4096 × 2160 (23.98p), 3840 × 2160 (29.97/23.98p), 2704 × 1520 (30/25p), 1920 × 1080 (59.94/29.97p)
- Encoder: MPEG4/AVC/H.264/JPEG-Lossless (RAW)
- Max bitrate: Up to 1.9Gbps at 3840 × 2160 (29.97p/23.98p)
- Format: MP4 / MOV / Cinema DNG (RAW)
- Video NR: Supported
- Stabilizer: Supported
- Storage support: Micro-SD Class 10 / SSD
- Default RAW storage: 512GB SSD
- Lens mounting: Micro Four Thirds
- Package contents: Zenmuse X5R camera, DJI MFT 15mm f/1.7 ASPH lens

Features:
- Professional aerial camera system for the Inspire 1 series
- Records lossless 4K video in RAW
- Includes DJI MFT 15mm f/1.7 ASPH lens
- Supports DNG and Cinema DNG RAW capture
- Uses Micro-SD Class 10 and SSD storage for RAW workflows
- 15mm lens offers an equivalent focal length of 30mm and a 72° diagonal field of view
- Aperture range of F/1.7-F/16 for flexible exposure control
