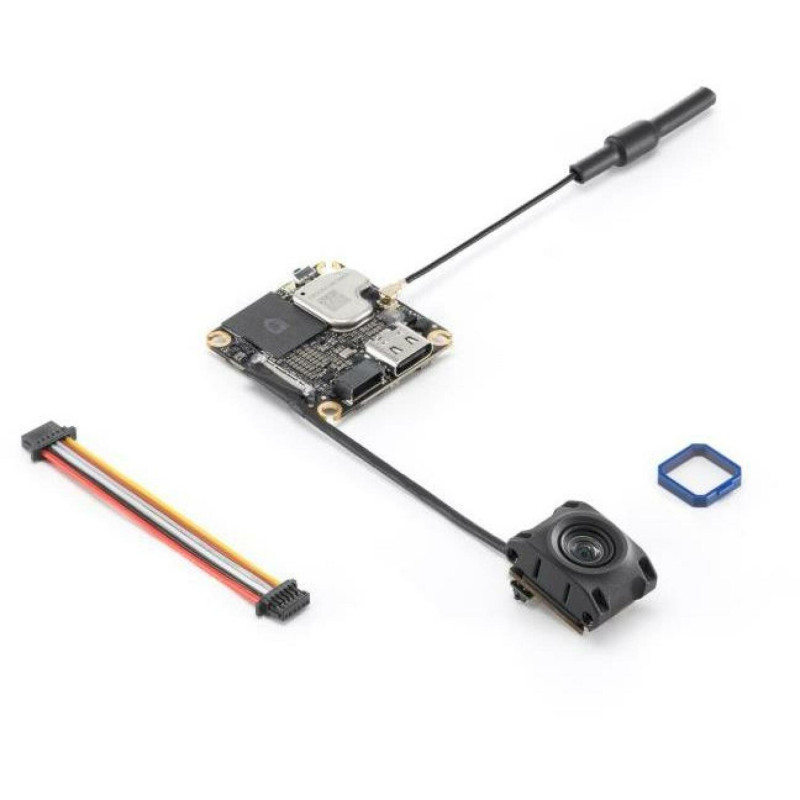

DJI O4 Air Unit

DJI O4 Air Unit is a compact digital FPV air unit for custom FPV builds and smaller drones. It supports 4K/60fps recording, a 155° ultra-wide field of view, and digital transmission with up to 15 km range when used with DJI Goggles 3 or DJI Goggles N3 (FCC).

Technical Specifications:
- Product type: Digital FPV air unit
- Weight: approx. 8.2 g
- Air Unit weight (camera module excluded): approx. 15.6 g
- Air Unit weight (camera module included): approx. 32 g
- Antenna weight: approx. 2.1 g/pcs
- Image sensor: 1/2-inch
- FOV: 155°
- Equivalent focal length: 12 mm
- Aperture: f/2.8
- Focus range: 0.6 m to ∞
- Video recording: 4K/60fps
- Operating frequency: 5.170-5.250 GHz; 5.725-5.850 GHz
- Transmission range: 15 km (FCC), 8 km (CE), 8 km (SRRC) with DJI Goggles 3 or DJI Goggles N3
- Supported modes: auto mode; manual mode
- Channel bandwidths: 60 MHz, 40 MHz, 20 MHz, 10 MHz
- Compatible goggles: DJI Goggles 3, DJI Goggles N3, DJI Goggles 2, DJI Goggles Integra
- Transmission module: 33.5×33.5×13 mm
- Camera module: 25.55×20×23.30 mm
- Coaxial cable: 130 mm
- 3-in-1 cable: 100 mm
- Antenna: 110 mm

Features:
- Lightweight FPV air unit designed for compact drone builds
- Higher resolution, lower latency, and extended-range digital transmission
- 155° ultra-wide field of view for FPV footage
- Supports RockSteady 3.0+ stabilization and Gyroflow compatibility when stabilization is off
- Compatible with DJI Goggles 3, DJI Goggles N3, DJI Goggles 2, and DJI Goggles Integra
