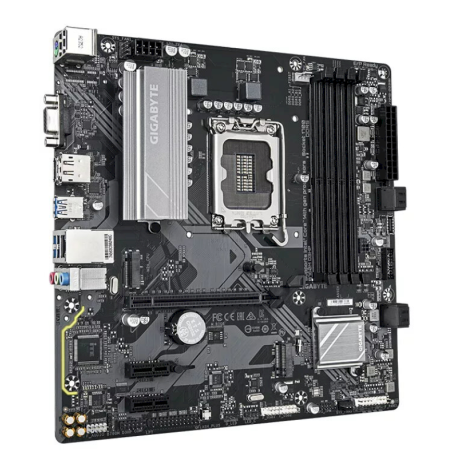

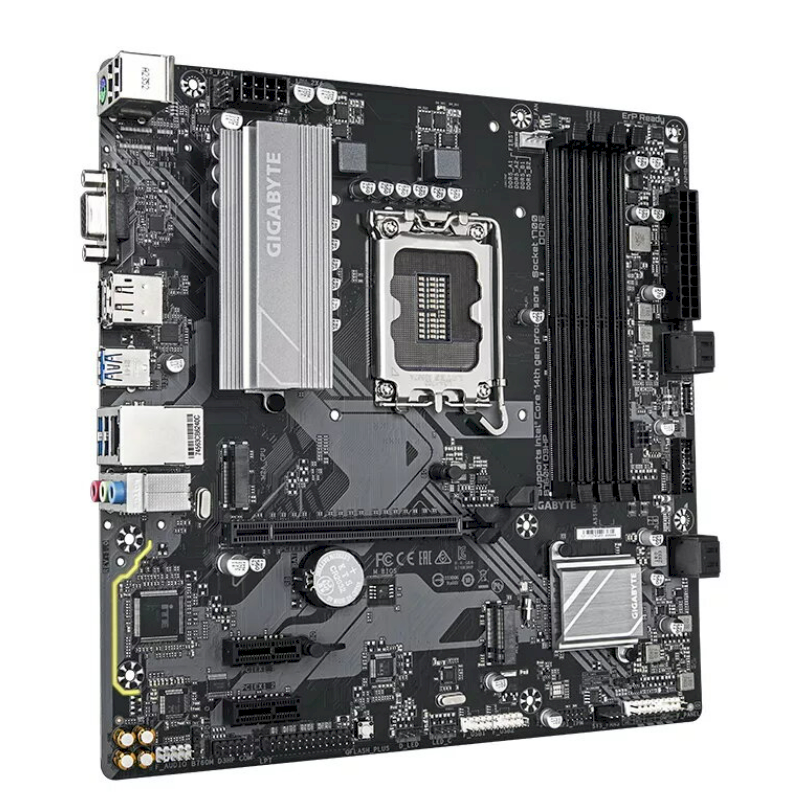

Gigabyte B760M D3HP Motherboard

Gigabyte B760M D3HP is a Micro ATX motherboard for Intel-based PC builds. It supports DDR5 memory, high-speed M.2 storage, and modern connectivity options.

Technical Specifications

Form factor: Micro ATX

Chipset: Intel B760

Socket: LGA1700

CPU support: Intel Core 12th/13th/14th Gen

Memory type: DDR5

RAM slots: 4 × DIMM

Maximum memory: 256 GB

Memory speed: Up to 5600 MT/s

PCIe x16: 1 × PCIe 4.0

PCIe x1: 2 × PCIe 3.0

M.2: 2 × M.2 PCIe 4.0 NVMe

SATA: 4 × SATA III 6 Gb/s

Video outputs: HDMI, DisplayPort, VGA

Network: Gigabit LAN

Audio: Realtek HD Audio 7.1

USB:

5 × USB 3.2 Gen1

2 × USB 2.0
