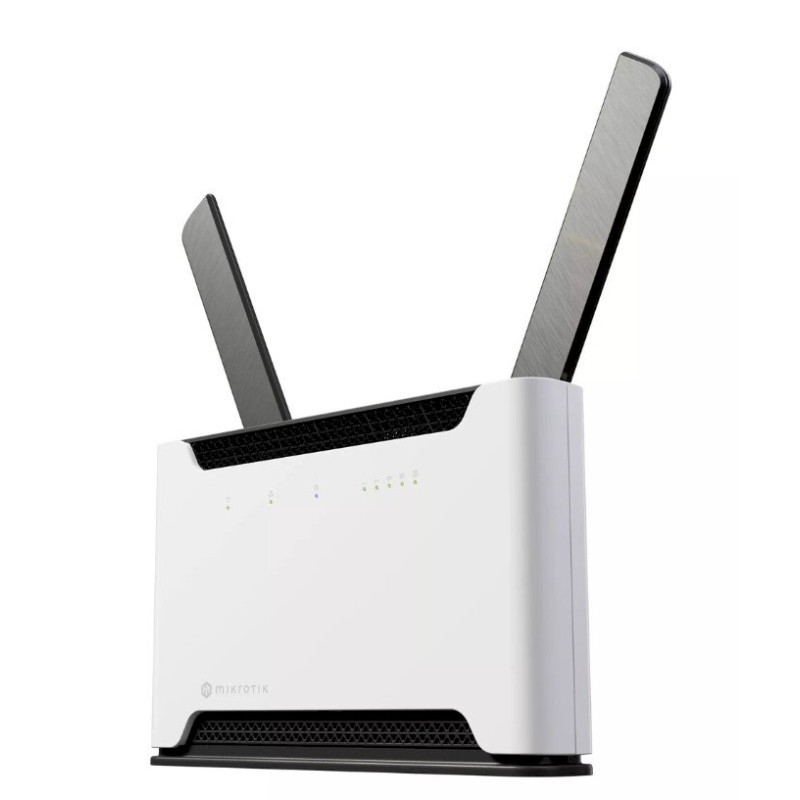

Mikrotik Chateau LTE18 AX 5HaxD2HaxD-TC&EG18-EA LTE Wi-Fi6 Router

MikroTik Chateau LTE18 ax is a high-performance 4G LTE desktop router with Wi-Fi 6 support. It features an LTE Category 18 modem with download speeds of up to 1.2 Gbps and dual-band Wi-Fi with speeds of up to 574 Mbps on 2.4 GHz and up to 1200 Mbps on 5 GHz. The router provides four Gigabit Ethernet ports and one 2.5 Gigabit Ethernet port, supports a Micro SIM card, and includes a USB port. It runs RouterOS v7 and is suitable for homes, offices, and other environments requiring fast and reliable Internet connectivity.

Technical Specifications

Device type: 4G LTE Wi-Fi router

Model: Chateau LTE18 ax

Processor: Quad-core IPQ-6010

CPU frequency: up to 1.8 GHz

Architecture: ARM 64-bit

Operating system: RouterOS v7

RouterOS license level: 4

RAM: 1 GB DDR3L

Internal storage: 128 MB NAND

Mobile network: 3G/4G LTE

LTE category: Cat 18

Maximum LTE download speed: 1.2 Gbps

Maximum LTE upload speed: 150 Mbps

LTE MIMO: 4×4

Wi-Fi: 802.11a/b/g/n/ac/ax

Wi-Fi standard: Wi-Fi 6

2.4 GHz speed: up to 574 Mbps

5 GHz speed: up to 1200 Mbps

Wi-Fi antennas: 2×2.4 GHz and 2×5 GHz

2.4 GHz antenna gain: 3 dBi

5 GHz antenna gain: 6 dBi

Ethernet ports: 4 × 10/100/1000 Mbps

2.5G Ethernet: 1 × 10/100/1000/2500 Mbps

SIM card: 1 × Micro SIM

USB: 1 × USB Type-A

Wi-Fi security: WPA3

Power input: 12–28 V DC

Maximum power consumption: 19 W

Protection rating: IP20

Operating temperature: –40°C to +65°C
